Wi-Fi I/O Module with 6-ch RTD Input

• 6-channel RTD Input
• 3-wire RTD Input with Lead Resistance Elimination
• Open Wire Detection
• Individual Channel Configuration
• Compatible with IEEE 802.11b/g standards
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• 4 kV ESD/EFT Protection
• 3000 VDC Intra-module Isolation
• Built-in Watchdog

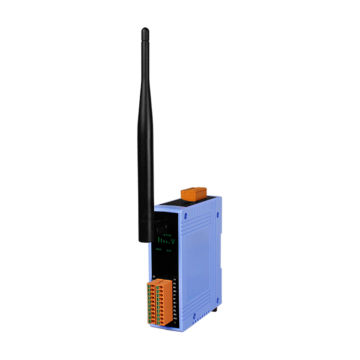

The WF-2015 is a Wi-Fi interface and 6-channel RTD input module for long-distance temperature measurement, and features automatic compensation for three-wire RTD sensor, meaning that accurate measurements can be obtained regardless of the length of the wires. With the popularity of 802.11 network infrastructure, the WF-2015 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2015 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

Valmistaja ICP DAS
Connection Wireless
