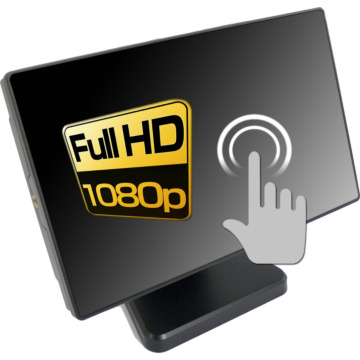

10.1" TFT Full-HD Touch Screen
- 10.1" Full-HD Touch screen.
- Brightness 320cd/m2
- High resolution 1920x1200 image.
- HDMI and VGA-inputs.
- USB for touchscreen (capacitive).
- Light housing.
- VESA-75, camera screw on monitor edges.
- Easy installation.
- Dust proof front panel.
- DC12V.
- NOTE! Mounting stand is optional!
Package includes
- 1x Touch screen
- 1x HDMI-cable
- 1x VGA-cable
- 1x USB-cable
- 1x AC-power adapter
| DISPLAY | Display Screen | 10.1" 8bit IPS |
| Physical Resolution | 1920×1200 | |
| Aspect Ratio | 16:10 | |
| Brightness | 320cd/m2 | |
| Contrast | 1000:1 | |
| Viewing Angle | 175°/175°(H/V) | |
| INPUT | HDMI | 1 |
| VGA | 1 | |
| USB | 1 | |
| AUDIO | Speaker | 1 |
| Ear Phone Slot | 1 | |
| HDMI FORMAT | 4K ~ Full HD ~ SD | 4K 30hz ,1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
| POWER | Current | ≤750mA(12V) |
| Input Voltage | DC 7-24V | |
| Power Consumption | ≤10W | |
| ENVIRONMENT | Operating Temperature | 0-50C |
| Storage Temperature | -20-60C | |
| DIMENSION | Dimension(LWD) | 252×157×25mm |
| Weight |
53 5g |
| Display Size | 10.1" |
|---|---|
| Touch type | Projected Capasitive (PCAP) |
| Signal input | VGA, HDMI |
