ACE-4860AP-RS

Lead time 4-22 days
SKU
ACE-4860AP-RS
EUR203.16

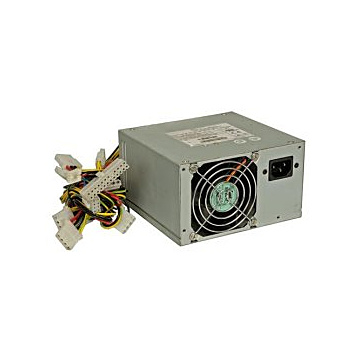

600W AC-DC PS/2 ATX Power Supply, with PFC.
Details
* 600W for high power consumption RAID / Multi-core system.
* High efficiency.
* ATX 2.0 standard w/ new 20+4 ATX power and SATA connector design.
* Full functional over voltage / current protection.
* 100% Hi-pot tested.
* Multiple safety / EMC certificated.
Specifications
Input

















Voltage95 ~ 132VAC,180 ~ 264VAC Auto Range
Frequency47~63 HZ
Input Current12A(RMS)@115VAC

6A(RMS)@230VAC
Inrush Current60A Max for 115VAC

120A Max for 230VAC


Output























































VoltageMin. loadMax. loadRipple & Noise
+3.3V0A24A50mV
+5V0A30A50mV
+12V11A12A120mV
+12V21A12A120mV
+12V30.5A18A120mV
+12V40A18A120mV
-12V0A1A120mV
+5Vsb0A3A50mV

+3.3V & +5V +12V total
General

































Watt600W
PFCActive
Hold-up time16ms minimum
Efficiency70%
MTBF100,000hrs
Temperature0 ~ 40˨C (Operating)

-40 ~ 70˨C (Storage)
Dimension140 x 150 x 86mm
Output Connector20+4PIN ATXx1

4PIN 12V CPUx2

HDD/CDROMx9

FDDx1

SATAx2
