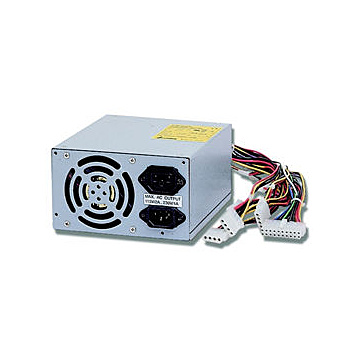

ACE-828M

SKU
ACE-828M
In Stock
128.01EUR 102.00EUR
280W AC-DC PS/2 ATX, Medical

Specification

Input Voltage: 90~130VAC or 180~260VAC(Auto Switch)

Output Range:

Nominal

ACE-828M

Rated

MAX

+5V

25A

30A

+12V

10A

15A

-12V

0.5A

1A

+5V

0.5A

1A

+3.3V

8A

15A

+5Vsb

0.72A

1.2A

Ripple and Noise: Less than 1% of each output at rated load

Hold-up Time: 20ms

Efficiency: Higher than 65%

Protection: Over voltage/Load protection and short circuit protection

Altitude: 0 ~ 10,000ft

TTL signal compatible power good signal

MTBF:177,287 Hours

Vibration: 10-55Hz at 2G 3min. period, 30 min. along X, Y and Z axis.

Shock: 10G for 11ms once on each X, Y and Z axis

Safety: Meets UL 2601

EMI: Meets EN55011 class "B"

EMC: (Designed to meet the following limits)

- IEC 801-2 4KV contact, 8KV Air Discharge

- IEC 801-3, 3V/M, 26MHz to 1GHz

- IEC 801-4, 2KV power mains

- IEC 801-5, 2KV criteria B

Operation Temperature: -20ºC ~ 70ºC (Derating curve will occur 40ºC ~ 70ºC)

Storage Temperature: -40ºC ~ 75ºC
