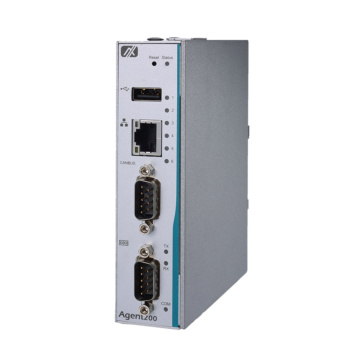

Agent200-FL-DC
SKU
Agent200-FL-DC
Lead time 21-30 days
- Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, 1 COM, 1 LAN, DIO (4-in/4-out) and CANbus
- RISC-based (i.MX 6UltraLite) processor 528 MHz
- 256MB DDR3L SDRAM onboard
- 4GB eMMC flash onboard
- 2 PCI Express Mini Card slots (Wi-Fi or 3G/4G)
- 4 digital inputs and 4 digital outputs
- Power input range of 9V to 48V DC with terminal block
- Embedded Linux (Yocto) operating system
- Fanless and compact design
- Wide operating temperature range from -40°C to +70°C
| System | |
| Processor | NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x eMMC 4GB flash onboard 1 x Micro SD card slot |
| Memory | 256 MB DDR3-1600 onboard |
| GPU / Graphics | |
| I/O Ports | |
| USB 2.0 | 1x USB 2.0 |
| USB 3.0 | |
| Serial | 1 x RS-232/422/485 |
| Video | |
| Ethernet | 1 x 10/100 Mbps Ethernet Magnetic isolation protection 1.5KV |
| Other Ports | 1 x CANBus 1 x 8-CH DI/DO |
| Expansion | |
| Expansion Interface | 2 x Full-size PCI Express Mini Card slot (USB signal) 1 x SIM slot |
| Operating System | |
| Operating System | Linux Yocto |
| Power | |
| DC Input / Source Voltage | 9-48V DC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 0.3 kg |
| Dimensions | 31 x 100 x 125 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum , IP40 |
| Mounting | Din-rail, Wall mount |
| Certification | |
| Certification | CE, FCC certified |
| Cooling | Fanless |
|---|
