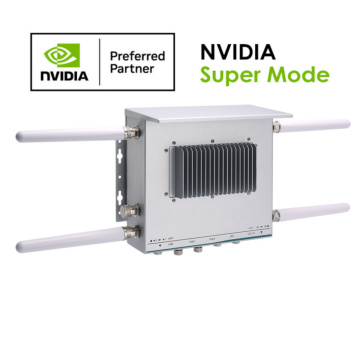

AIE810-ONX-16GB
SKU
AIE810-ONX-16GB
Lead time 21-30 days
Rugged IP67-rated Fanless Edge AI System with NVIDIA® Jetson Orin™ NX, 2 PoE, 1 USB, 8-CH DIO and 9 to 36 VDC for Outdoor Edge AI Application
- IP67-rated design, specifically for outdoor environments
- NVIDIA® Jetson Orin™ NX 16GB (157 TOPS)
- Supports Super Mode with Jetpack 6.2 and above
- Seamless speed: 5G, Wi-Fi 6E, and 2.5GbE combined
- 9 to 36 VDC wide range power input
- -25°C to +60°C operating temperature range
| System | |
| Processor | NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| AI Accelerator | NVIDIA® Jetson Orin™ NX 16GB (157 TOPS) |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores |
| Chipset | N/A |
| Storage | 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot |
| Audio | n/a |
| Memory | 16GB 128-bit LPDDR5 onboard |
| Graphics | - |
| I/O Ports | |
| USB 2.0 | 1 x M12 A-Code 8-pos dual USB 2.0 |
| USB 3.0 | |
| Serial | n/a |
| Video | - |
| Ethernet | 2 x M12 X-Code 8-pos GbE PoE PSE, IEEE 802.3at, up to 30 watts of power |
| Other Ports | 5 x N-Jack antenna opening with a waterproof design 1 x M12 A-Code 12-pos isolated 4-in/4-out DIO |
| Expansion | |
| Expansion Interface | 1 x full-size PCI Express Mini Card slot (USB + PCI
Express signal) for Wi-Fi/LTE 1 x M.2 Key E 2230 slot for Wi-Fi 6E 1 x M.2 Key B 3042/3052 slot for 5G/LTE 1 x Nano SIM slot |
| Operating System | |
| Operating System | Linux Ubuntu 22.04 or later |
| Power | |
| DC Input / Source Voltage | 1 x M12 A-Code 5-pos power input Input: 9 to 36 VDC (typical 12/24 VDC) Inrush current: 0.69A/3.08A |
| Reliability & Protection | |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 4.0 kg |
| Dimensions | 240 x 220 x 93.4 mm |
| Enclosure | |
| Material | Aluminum die-casting and heavy-duty steel, IP67 |
| Mounting | Wall |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Environment | |
| Certifications | CE |
| Operating Temperature | 25W power mode: -25°C to +60°C |
| Shock | IEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration) |
| Vibration | IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis) |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Cooling | Fanless |
