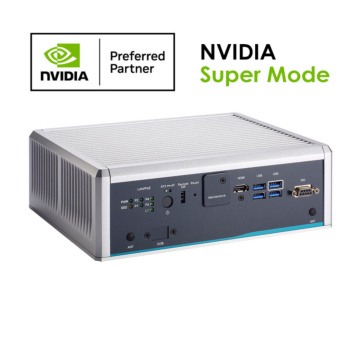

AIE900B-ONX NVIDIA® Jetson Orin™ NX Super
SKU
AIE900B-ONX-1L4P-C
Coming

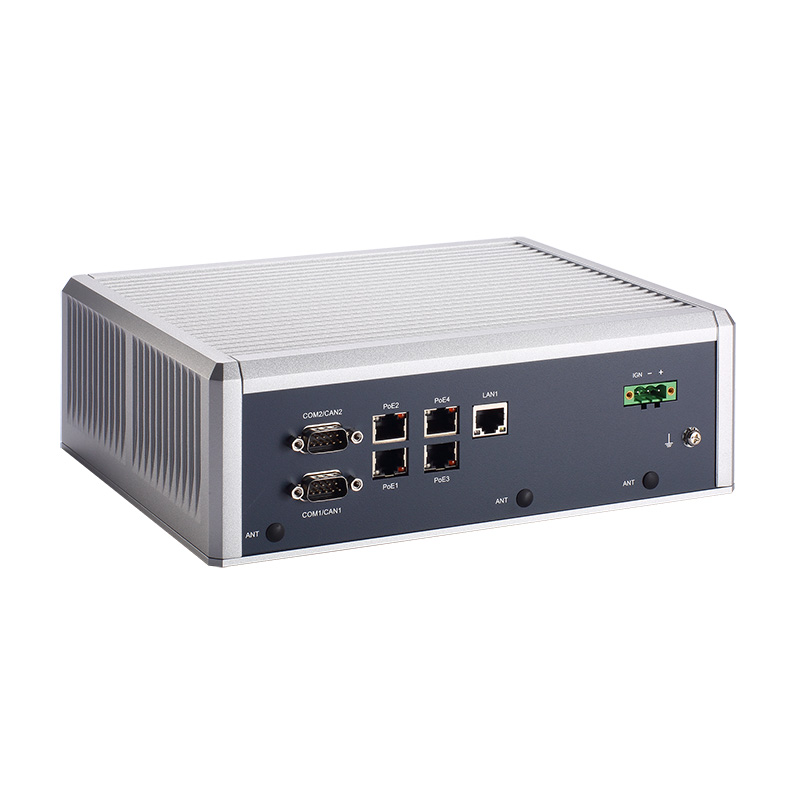

Fanless Edge AI System with NVIDIA® Jetson Orin™ NX Super, 1 HDMI, 1 GbE LAN, 4 GbE PoE, 4 USB, 2 COM/CAN, 8-CH DIO, and 8-CH GMSL for AMR & Robotics
- NVIDIA® Jetson Orin™ NX Super (Up to 157 TOPS)
- Supports Super Mode with Jetpack 6.2 and above
- Seamless connectivity with 5G, Wi-Fi, and GbE combined
- Effortless management with USB and PoE device power control
- Supports 4 USB and 4 PoE for camera and sensor connectivity
- Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon
- Supports the NVIDIA Isaac™ Robot Operating System (ROS) SDK for AI-powered robot development
| System | |
| Processor | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| CPU Board | NVIDIA® Jetson Orin™ NX 16GB Super (Up to 157 TOPS) |
| GPU | 1024-core NVIDIA Ampere™ GPU with 32 Tensor Cores |
| Chipset | SoC |
| Memory | 16GB 128-bit LPDDR5 onboard |
| Storage | 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.1 | 4 x USB 3.2 Gen2 (one for image update) |
| Serial | 2 x DB9 for COM (RS-232/422/485) & CAN |
| Video | 1 x HDMI 2.1 with 4K2K supported (lockable) |
| Ethernet | 1 x 10/100/1000 Mbps (via Orin™ NX) 4 x 10/100/1000 Mbps PoE (Intel® I210-IT) |
| Other Ports | 1 x 8-CH DI/DO |
| Expansion | |
| Expansion Interface | 1 x full-size PCI Express Mini Card slot (USB + PCI
Express signal) for Wi-Fi/LTE 1 x M.2 Key B 3042/3052 slot for LTE/5G 1 x Nano SIM slot |
| Operating System | |
| Operating System | Linux Ubuntu 22.04 or later |
| Power | |
| DC Input / Source Voltage | Input: 9 to 36 VDC (typical 12/24 VDC) with smart
ignition control Inrush current: 1.87A/1.37A |
| Environmental | |
| Operating Temperature | 40W power mode: -25°C to +70°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Vibration | 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions) |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 2.6 kg |
| Dimensions | 239 x 185.3 x 79.4 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting / DIN-rail /VESA mount |
| Certification | |
| Certification | CE, FCC |
| Vibration | IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500
Hz, and 1 hr/axis) MIL-STD-810H, Method 514.8, and Category 20 |
| Shock | IEC 60068-2-27 (with SSD: 50G, half-sine, and 11 ms
duration) MIL-STD-810H, Method 516.8, and Procedure I |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Cooling | Fanless |
