AIIS-3400P-00A1E

Lead time 21-30 days
SKU
AIIS-3400P-00A1E

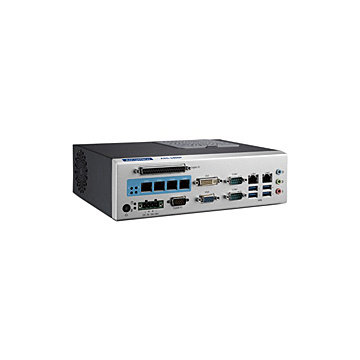

Compact Vision System, Supports Intel® 6th generation Core i CPU, 4-CH Camera Interface for GigE PoE
Details
* Intel® 6th generation Core i CPU (LGA1151)
* 4-CH GbE PoE (Power over Ethernet)
* Powered device auto detection and classification
* IEEE 802.3af compliant, supports IEEE 1588
* Compatible with GigE cameras
Specifications
Processor Core Logic System

CPU:
Intel® 6th Gen. Core™ i3-6100
Intel® 6th Gen. Core™ i5-6500
Intel® 6th Gen. Core™ i7-6700

Chipset:
Intel H110

System memory:
2 x 240-pin DDR4 SO-DIMM sockets, supporting up to 32B

Graphics
Integrated Intel HD Graphics

Ethernet
LAN1: Intel i219LM
LAN2: Intel i210AT
(Both support Wake on LAN)

Camera interface
CH1~CH4: Intel i210
15W per channel / 30W for 1 & 2 channel (Note: selected by BIOS)

I/O expansion
1 VGA+DVI-D
Isolated 4 DI and 4 DO Channels
2x RS-232/422/485


Power Supply
DC 19 VDC ~ 24 VDC

Expansion Slot
None

Storage
1 x SATA 2.5" bay

Mechanical
Construction:Aluminum alloy
Mounting: Wall-mount
Dimensions: 230 x 70 x 175 mm

Environment Specifications
Operating Temp: 0 ~ 45°C , ambient w/ air flow
Storage Temp: -40 ~ 85°C
Relative Humidity: 10 ~ 95% @ 40°C (non-condensing)
