AIM101-N150-8R
SKU
AIM101-N150-8R
Coming

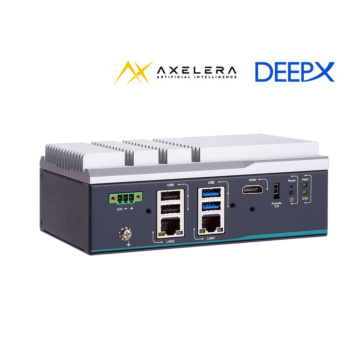

Fanless Edge AI System with Intel® Processor N150, featuring a PCIe Gen 3 x4 M.2 Slot to Run AI Accelerator at Full Performance Capability, Suitable for Computer Vision Inference at the Edge
- Powered by Intel® Quad-core processor N150 (Twin Lake)
- Optional M.2 AI accelerator cards (up to 100 TOPS)
- Qualified Intel® ESQ for Metro AI Suite Device
- Seamless connectivity with Wi-Fi 6E, LTE and 2.5GbE combined
- Intelligent power management - USB power on/off control
- Wide power input range of 9 to 36 VDC with smart ignition control
- Ideal for edge AI object detection, image classification and video analytics applications
| System | |
| Processor | Intel® processor N-series N150 Quad-core up to 3.6 GHz (Twin Lake) |
| AI Accelerator | Axelera Metis M.2 module (100 TOPS) DeepX DX-M1 M.2 module (25 TOPS) Hailo-8 M.2 module (26 TOPS), by project MemryX MX3 M.2 module (20 TOPS), by project |
| GPU | - |
| Chipset | SoC integration |
| Storage | 1 x 2.5" SATA HDD/SSD 1 x M.2 Key M 2280 NVMe SSD 1 x mSATA SSD |
| Audio | n/a |
| Memory | 8GB LPDDR5 SDRAM onboard *16GB (2 x 8GB) LPDDR5 SDRAM onboard, by project |
| Graphics | 1 x HDMI with FHD supported |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | 2x USB 3.2 Gen2 |
| Serial | 2 x COM (RS-232/422/485) via optional I/O cable |
| Video | 1 x HDMI with FHD supported |
| Ethernet | 2 x 2.5 GbE LAN (Intel® I226-V) |
| Other Ports | 2 x 8-CH DIO via optional I/O cable TPM 2.0 5 x antenna opening for Wi-Fi/LTE/GPS 1 x reset button 1 x power button 1 x remote power switch 1 x terminal block for power input |
| Expansion | |
| Expansion Interface | 1 x M.2 Key M 2280 slot (PCIe Gen 3 x4) for AI
accelerator card or NVMe SSD 1 x M.2 Key E 2230 slot for Wi-Fi 6E 1 x full-size PCI Express Mini Card slot (USB + PCIe/SATA) for Wi-Fi/LTE/GPS or mSATA 1 x Nano SIM slot |
| Operating System | |
| Operating System | Windows® 11, Linux |
| Power | |
| DC Input / Source Voltage | Input: 9 to 36 VDC (typical 12/24 VDC) with smart
ignition control Inrush current: 0.37A/1.93A |
| Reliability & Protection | |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.1 kg |
| Dimensions | 167 x 119 x63 mm |
| Enclosure | |
| Material | Extruded Aluminum with Heavy Duty Metal |
| Mounting | Wall / DIN-RAIL |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Environment | |
| Certifications | CE, FCC Class A, and UKCA |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) (with W.T. AI accelerator card, DRAM and SSD) |
| Shock | IEC 60068-2-27 2008 Table A.1 (with SSD: 50G, half
sine, and 11 ms duration) MIL-STD-810H, Method 516.8, and Procedure I (with SSD: 40G, TP sawtooth, and 11 ms duration) |
| Vibration | IEC 60068-2-64 (with SSD: 3Grms, random, and 5 to 500
Hz) MIL-STD-810H, Method 514.8, Category 20, and Figure 514.8C-2 |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Cooling | Fanless |
