AIMB-788

SKU
AIMB-788G2-00A1
Lead time 21-30 days

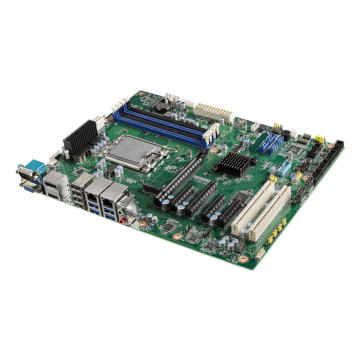

LGA1700 12th/13th Generation Intel® Core™ i9/i7/i5/i3 ATX Motherboard with DP/HDMI/VGA, DDR4, USB 3.2, M.2

  • Intel® 12th/13th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with Q670E chipset
  • Four DIMM sockets up to 128 GB DDR4 3200
  • Triple display DP/HDMI/VGA and dual GbE LAN
  • M.2, SATA RAID 0, 1, 5, 10, USB 3.2 Gen 2
  • Advantech iBMC remote out-of-band power management solution on DeviceOn
  • Qualified for AWS (Amazon Web Service) IoT Greengrass
  • Note 1: Legacy platform is not supported.
Form Factor
Form Factor Industrial ATX


System
Processor Intel® 12th/13th generation Core™ i9/i7/i5/i3
Security Hardware TPM2.0 (optional)
Chipset Q670E chipset
Storage 4 x SATA-600
1 x M.2 Key M 2280
Memory 4 x 288-pin DDR4-3200 DIMM, up to 128GB
Graphics Intel UHD Graphics
I/O Ports
USB 2.0 4 x USB 2.0

4 x USB 2.0 (pin header)
USB 3.2 4 x USB3.2


Serial 1 x RS-232
1 x RS-232/422/485 (pin header)
4 x RS-232 (pin header)
Video 1 x DisplayPort
1 x VGA
1 x HDMI
Ethernet 2 x 10/100/1000 Mbps Ethernet (Intel® i210-AT & Intel® i219-LM)
Other Ports GPIO 8bit
Audio MIC-in/Line-out
Expansion
Expansion Interface 1 x PCIe x16 (Gen4)
1 x PCIex8 (x4 link)
3 x PCIe x4 (Gen3)
2 x PCI (32bit)
Operating System
Operating System Windows10 , Windows 11, Linux
Power
Power Input Standard 12V ATX power
Power Requirements
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 1kg
Dimensions 304,8mm x 244mm
Certification
Certification CE
More Information
Manufacturer / BrandAdvantech
SocketLGA1700
Form FactorATX
