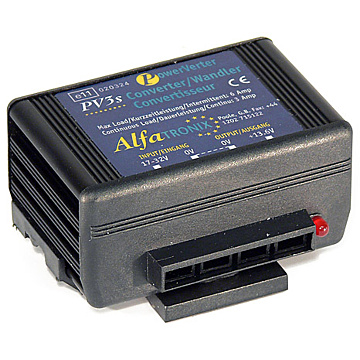

AlfaTronix PV3s 24V/12V DC-DC Converter

Not available
EUR39.00 EUR31.45
36W/3A 24V-12V converter. Protected against over current, over heat, transients and catastrophic failures. Power conversion efficienfy over 90%.
-installations of mobile and cellular radio communications equipment
-telemetry systems
-trucks, buses, forestry and off road vehicles
-boats and yachts
-industrial applications
Package includes
1x AlfaTronix PV3s 24V/12V DC-DC converter
1x Mounting screws
Input voltage range: 17 to 32Vdc

Output voltage: 13.6Vdc +15%

Transient voltage protection: ISO7637-2 24Vdc Commercial Vehicles

Electro static voltage protection: ISO10605, ISO14982, >8kV contact, 15kV discharge

Output noise: Off load current: Power conversion efficiency: 90% for non-isolated units
Mean time between failures >162 years (HRD4)
Operating temperature: -25°C to +30°C
Storage temperature: -25°C to +100°C
Operating humidity 95% max, non-condensing
Casework Anodised Aluminium, Glass Filled Polycarbonate
Dust water and impact resistance IP533
Connections: Four 6.3mm push-on flat blade connectors
Output indicator: Red LED adjacent to output terminals
Mounting method: ‘Click ‘n‘ Fit’ mounting clip, fitted separately using three hole fixing
Safe area protection: Over current, Over heat, Transients and Catastrophic failure
*89/336/EEC The EMC Directive
*95/54/EC The Automotive EMC Directive
*93/68/EEC The CE Marking Directive
*VIDG5 AES For use on Police and Fire Vehicles
*Tested to ISO7637-2, ISO10605, ISO14982, ISO11451, ISO11452, CISPR 25, VDE0879-3, EN60945 Annex A
Markings CE Marked and e Marked No. ell 990324
More Information
Input Voltage24V DC
Output voltageDC12V
