ARCDIS-115AP

Lead time 21-30 days
SKU
ARCDIS-115AP-01

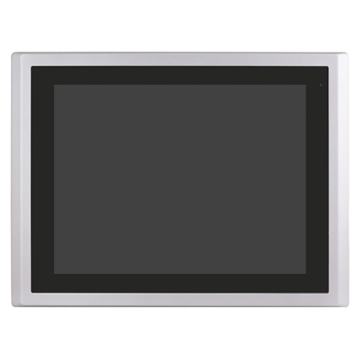

15" TFT Industrial monitor, IP65 front, Die-cast chassis, VGA&DVI, HDMI, DP, 1024 x 768, 9-36V DC
Details
* 15.0" TFT-LCD Projected Capacitive Touch
* Wide range DC 9~36V power input
* IP66 compliant front panel
* VGA/DVI-D/HDMI/DP input
* System power LED light
Specifications
Display
Screen Size 15" TFT LCD
Screen Resolution 1024x768
Display Ratio 4:: 3
Contrast Ratio 800 ::1
Brightness 420
Viewing Angle 160/160
Number of Colors 262k
Touch Screen
Touchscreen PCAP
I/O Ports
Display input 1x VGA
1x DVI
1x HDMI
1x DP
OSD OSD on rear side
On board controller, extendable keypad from connector
Touchscreen USB connection
Other Ports 1 x Audio line-in phone jack
Operating System
Operating System Windows
Power
DC Input / Source Voltage DC 9~36V
230V AC adapter
Power Management
Multimedia
Integrated Speakers -
Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Fanless
Dimensions / Weight
Weight (kg) 4.3 kg
Dimensions 410 x 310 x 54.6 mm
Enclosure
Bezel IP66 compliant front panel
Material Diecast Aluminum
Mounting Panel , VESA 100
Note *
Certification
Certification CE / FCC
