ARCHMI-916P

Lead time 21-30 days
SKU
archmi-916p

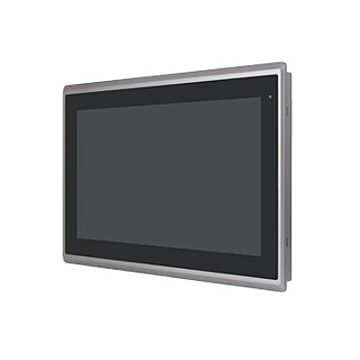

15.6" Fanless Panel PC with Intel Core i3 CPU, 4GB DDR3 RAM, Projected Capacitive touch, 9~36VDC input with adapter, Aluminum chassis
Details
15.6" Industrial Compact Size Panel PC
Flat Front Panel Touch Screen
Fanless Design
Intel 4th Gen. Core i3 CPU built-in
Onboard 4GB DDR3L 1600 MHz
9~36V DC wide-ranging power input
Specifications
LCD Specifications
15.6" TFT LCD Panel
Resolution : 1366 x 768, WXGA
Brightness : 300 cd/m²
Viewing Angle (H-V): 160/160

Touchscreen
Projected capacitive touch panel

Processor Core Logic System

CPU:
Intel 4th Gen. Core i3-4010U

System Chipset:
SoC

System Memory:
4GB DDR3L SO-DIMM RAM module installed

Ethernet
2 x RJ-45 GbE LAN

I/O Interface
1 x RS232/422/485
1 x RS232
2 x USB 2.0
2 x RJ-45 GbE ports
1 x Audio, Line-out

Storage
1 x 2.5” SATA bay

Expansion
1 x Mini-pcie socket (Full Size)

Power Supply
9-36V DC input

Software Support
Windows 7, Windows 8, Linux

Environment Specifications
Operating Temperature 0°C to 50°C
Storage temperature: -20°C ~ 60°C
Humidity: 10% ~ 90% (non-condensing)


Mechanical
Construction: Aluminium housing
Mounting: Panel Mounting , VESA-100
Weight: 4.8kg
Dimension: 412 x 277.5 x 60.4 mm

Safety: CE
