ARK-1122F-S8A1E

Lead time 4-22 days
SKU
ARK-1122F-S8A1E

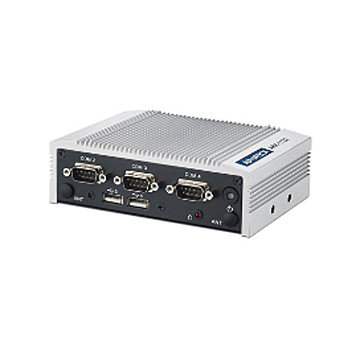

Palm-size Fanless PC, Intel Atom N455, 4 COM
Details
* Intel Atom processor N455 1.66 GHz + ICH8M
* Low-power-consumption, * Palm-size design: 133.8 x 43.1 x 94.2 mm, IP40
* DDR3 memory support , up to 2GB
* Supports 2.5" SATA HDD
* One half mini-PCIe slot. Ex : WiFi add-on card
* 4COM ports (2 x RS-232, 2 x RS-232/422/485 select by BIOS)
* Supports SUSIAccess and Embedded Software APIs
* Optional VESA / DIN rail / Wall mounts
Specifications
Processor Core Logic System

CPU:
Intel Atom N455 1.66 GHz

System Memory:
1 x 204-pin SODIMM, max 2GB

I/O Interface
1x VGA (Up to 1600 x 1200)
2x RS-232
2x RS-232/422/485 (selected by BIOS)
1x RJ45 10/100/1000mbs LAN
2x USB2.0


Storage
1 x 2.5" SATA bay

Expansion
mini PCIe card -slot (half-size)

Power Supply
12V DC input
240V AC adapter

Software Support
Win7, WES7

Environment Specifications
Operating Temperature -20°C to 60°C (with wide-temp industrial ssd)
Storage temperature: -20°C ~ 80°C
Humidity: 10% ~ 90% (non-condensing)

Safety: CE

Mechanical
Construction: aluminium housing

Mounting:
Wall/DIN/VESA

Dimension: 133.8 x 43.1 x 94.2 mm

Weight: 1.2 kg
