ARK-1221L

SKU

ARK-1221L-S5A1

Lead time 21-30 days

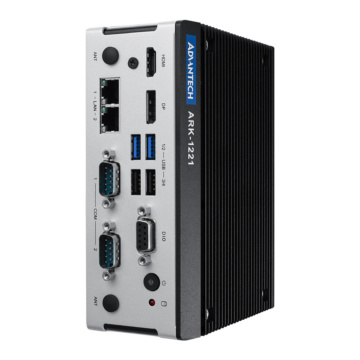

Intel Atom x6413E QC SoC with GbE, COM, USB, HDMI/DP and DIO ports DIN-Rail Fanless Box PC

Intel Atom® x6413E Quad Core
DIN-Rail system with essential I/O ports on front-side bezel
2 x Intel GbE and 2 x RS-232/422/485
Dual independent displays with one 4K HDMI and one 4K DP
2 x USB 3.2 and 2 x USB 2.0, 1 x internal USB2.0 for security dongle
1 x M.2 2280 B key with nano SIM holder and 1 x M.2 2230 E key, 1 x full-size mPCIe
mSATA and 1 x 2.5" SATA storage device
12V ~ 28V wide range power input, -40 ~ 60 °C extended operating temperature

System
Processor	Intel AtomTM x6413E , 4-Core 1.5Ghz
Security Hardware	TPM2.0 (by optional module)
Chipset	SoC
Storage	1 x 2.5” SATA HDD/SSD
Storage Support
Memory	2 x 260 pin DDR4-3200 non-ECC SO-DIMM, up to 32GB
Audio
Graphics	Intel® Iris® Xe graphics
I/O Ports
USB 2.0	2x USB2.0
USB 3.0	2x USB 3.2
Serial	2x RS-232/422/485
Video	1 x HDMI 1.4 1 x DisplayPort
Ethernet	2 x 10/100/1000/2500 Mbps Ethernet
Other Ports	8bit GPIO Audio CAN-port (optional )
Expansion
Expansion Interface	1 x mPCIe 1x M2. 2230 E key 1 x M.2 2280 B key with SIM holder
Operating System
Operating System	Windows® 10, LINUX
Power
DC Input / Source Voltage	12-28VDC
Operating Temperature
Operating Temperature	-40°C ~ +60°C (with Wide-Temp SSD, Memory)
Humidity Range	10% ~ 90%, non-condensing
Vibration	3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock	30 G, IEC 60068-2-27, half sine, 11 ms duration
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg)	1.5 kg
Dimensions	60 x 158 x 141 mm
Enclosure
Bezel
Material	Aluminum / Steel
Mounting	Din-Rail, Wall-mount
Certification
Certification	CE

More Information
Cooling	Fanless
CPU Family	Elkhart Lake (Atom/Celeron/Pentium)
Operating Temp	Wide Temp -40..70C
