ARK-1250L

SKU

ARK-1250L-x

Lead time 21-30 days

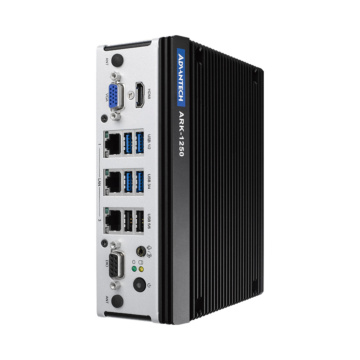

Intel® 11th gen Core™ i processor with Triple LAN/ Quadruple COM Din-Rail Fanless Box PC

i3-1115G4E CPU /Core i5-1145G7E
DIN-Rail system with essential I/O ports on front-side bezel
3 x Intel GbE, 4x RS-232/422/485
3 x USB 3.2 and 3 x USB 2.0, dual independent displays with one 4K HDMI and one VGA
3 Expansion: M.2 E-Key 2230, M.2 B-Key 2280, 1 x Full-size mSATA share with mPCIe slot
mSATA and 1 x 2.5" SATA storage device
12V ~ 24V wide range power input
-40 ~ 60 °C extended operating temperature
WISE-DeviceOn supported for quick AI deployment at scale

System
Processor	Intel Core i3-1115G4E / i5-1145G7E
Security Hardware	TPM2.0 (by optional module)
Chipset	SoC
Storage	1 x 2.5” SATA HDD/SSD
Storage Support
Memory	2 x 260 pin DDR4-3200 non-ECC SO-DIMM, up to 64GB
Audio
Graphics	Intel® Iris® Xe graphics
I/O Ports
USB 2.0	3x USB2.0
USB 3.0	3x USB 3.2
Serial	4x RS-232/422/485
Video	1 x HDMI 1.4 1 x VGA
Ethernet	1 x 10/100/1000 Mbps Ethernet 3 x 10/100/1000/2500 Mbps Ethernet
Other Ports	8bit GPIO Audio CAN-port (optional )
Expansion
Expansion Interface	1 x mPCIe 1x M2. 2230 E key 1 x M.2 2280 B key with SIM holder
Operating System
Operating System	Windows® 10, LINUX
Power
DC Input / Source Voltage	12-24VDC
Operating Temperature
Operating Temperature	-40°C ~ +60°C (with Wide-Temp SSD, Memory)
Humidity Range	10% ~ 90%, non-condensing
Vibration	3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock	30 G, IEC 60068-2-27, half sine, 11 ms duration
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg)	1.5 kg
Dimensions	60 x 173 x 141 mm
Enclosure
Bezel
Material	Aluminum / Steel
Mounting	Desk
Certification
Certification	CE

More Information
Cooling	Fanless
CPU Family	Tiger Lake (11th Gen Core i3/i5/7) Mobile
Operating Temp	Wide Temp -40..70C
