ARK-1252
SKU
ARK-1252
Lead time 21-30 days

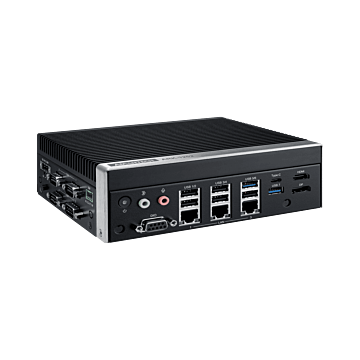

Intel® Core Processor Series 3 with Triple LAN/Four COM/USB Type C DIN-Rail Fanless Box PC
- Intel Core 3 304 and Core 5 320, up to 41 TOPS AI capabilities
- DDR5-6400 CSODIMM memory support up to 64GB
- Rich Industrial I/O design: 3x GbE, 4x COM, 1x USB Type C, 7x USB Type A, 1x GPIO, 2x CANbus
- Flexible expansions support: 3x M.2, idoor and POE module
- Triple displays support with HDMI+DP+USB Type C, up to 4K resolution
- 12~28V wide power input and -20~60°C wide temperature support
- TPM on board for system security
- SUSI API, WISE-DeviceOn, Trellix and Acronis bundled
- Edge AI SDK for runtime SDK integration and EdgeBMC for OOB management
| System | |
| Processor | Intel® Core 3 303 (1P+4LPE) Intel® Core 5 320 (2P+4LPE) |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | M.2 2280 M-key (PCIex Gen4x2) |
| Storage Support | |
| Memory | 1 x 262 pin DDR5-6400 non-ECC SO-DIMM, up to 64GB |
| Audio | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| Graphics | Intel® Xe3 graphics up to 16EUs |
| I/O Ports | |
| USB 2.0 | 5x USB2.0 |
| USB 3.0 | 2x USB 3.2 |
| Serial | 2x RS-232/422/485 |
| Video | 1 x HDMI 1 x DP 1 x Type C DP |
| Ethernet | 3 x 2.5GbE Ethernet (2x Intel i226, 1x Intel i210-IT) |
| Other Ports | 8bit GPIO Audio 2 x CAN-port (optional) |
| Expansion | |
| Expansion Interface | 1x M.2 3052 B Key with nano SIM holder 1x M.2 2230 E key 1x M.2 2280 M key |
| Operating System | |
| Operating System | Windows® 11, LINUX |
| Power | |
| DC Input / Source Voltage | 12-28 VDC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +60°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock | 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.5 kg |
| Dimensions | 173 x 60 x 141 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Din-Rail, Wall-mount |
| Certification | |
| Certification | CE, FCC, CCC, BSMI |
| Manufacturer / Brand | Advantech |
|---|---|
| Cooling | Fanless |
