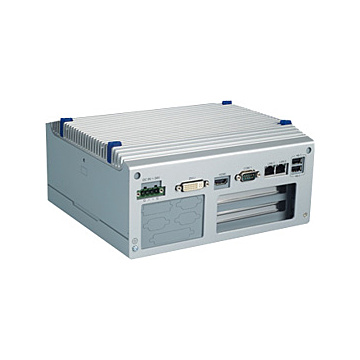

ARK-3440

SKU
ARK-3440F
Lead time 14-22 days
Intel Core i3/i5/i7 Processor with PCI/PCIe Expansion and Dual SATA HDDs
Details
* Intel Core i3/i5/i7 fanless embedded IPC
* Multi-display and support for wide screen with high resolution
* Supports 2 GbE, eSATA, 6 USB 2.0, audio and 3 COM ports
* Two internal 2.5" SATA HDD drive bays
* Various expansion interfaces for diverse applications
* Easy integration, easy maintenance, and wide input voltage range
Specifications
Processor Core Logic System

CPU:
Intel Core i3/i5/i7 Mobile cpu

System Chipset:
Intel® QM57 chipset

System Memory:
DDR3 SO-DIMM 1066MHz max 4GB.

I/O Interface

2 x RS-232
2 x RS-232/422/485 port
6 x USB ports
2 x RJ45 Gigabit LAN
Line-out, Mic-in, Line-in
1 x DVI (VGA by Cable)
1 x HDMI
1 x eSATA

Storage
2 x 2.5" HDD SATA bay

Expansion
1x PCI & 1x PCIe x1
2 x Mini PCIe slot

Power Supply
9VDC to 34VDC

Software Support
Windows XP/ Win 7

Environment Specifications

Operating Temperature 0°C ~ 45°C
Storage temperature: -20°C ~ 80°C
Humidity: 10% ~ 90% (non-condensing)

Safety: CE

Mechanical

Construction: Steel /aluminium housing

Mounting:
Desk/Wall mounting

Dimension: 220 mm x 102.5 mm x 200 mm

Weight: 4 kg

For more information see datasheet.
