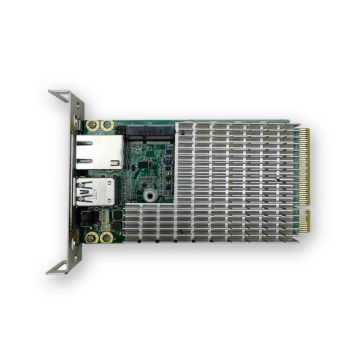

ASDM-APL6

SKU
ASDM-APL6-4200
Lead time 21-30 days

Intel® Smart Display Module with Intel® Atom® / Pentium® / Celeron® processor, 2 USB, M.2 E-Key 2230, Intel® GbE LAN

  • Intel® Smart Display Module (Intel® SDM) specification
  • Intel® Apollo Lake SoC on board
  • One 204-pin SO-DIMM DDR3L up to 1866MT/s 8GB SDRAM
  • One Intel® Gigabit Ethernet ports
  • M.2 Key M slot
  • M.2 (M-Key 2242), M.2 (E-Key 2230) expansion slots
  • 2 USB 3.0
System
Processor Intel® Pentium® N4200 1.10GHz / 2.50GHz (Base/Burst)QC 1.10GHZ (6W)


Chipset SoC
Storage eMMC onboard up to 64GB
Memory  8GB LPDDR4 onboard
Audio n/a
Graphics Intel® HD Gen. 9-LP Graphics
I/O Ports
SDM Edge connector 1x USB3.0
  1x HDMI 2.0
  1x DisplayPort 1.2
1x UART
  1x I2C
Ethernet 1x GbE LAN , RJ-45
Other Ports 2x USB 3.0 (Rear I/O)
Expansion
Expansion Interface 1 x M.2 Key E 2230 slot for Wi-Fi/BT
Operating System
Operating System
Power
DC Input / Source Voltage Through SDM golden finger
+12V & +3.3VBS
Operating Temperature
Operating Temperature 0°C ~ +60°C
Humidity Range 10% ~ 95%, non-condensing
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg) 1.0 kg
Dimensions 60 x 100 mm
Enclosure
Bezel
Material
Mounting Smart Display Module (SDM-S)
Certification
Certification CE, FCC Class A
