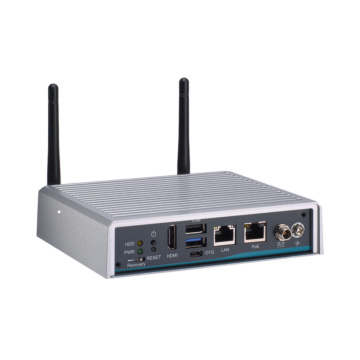

AIE100-903-FL
SKU
AIE100-903-FL
Lead time 21-30 days
* NVIDIA® Jetson Nano™ with Maxwell™ GPU architecture with 128 NVIDIA CUDA® cores
* High AI computing performance for GPU-accelerated processing
* Ideal for edge AI smart city applications
* Optional IP42 cover kit for semi-outdoor applications
* Supports one 15W GbE PoE for camera
* Wide operating temperature from -30°C to +60°C
* JetPack supported
| System | |
| Processor | NVIDIA® Jetson Nano™ |
| CPU Performance | Quad-core ARM® Cortex®-A57 MPCore processor |
| Security Hardware | |
| Chipset | SoC |
| Storage | Onboard 16GB eMMC (via Jetson Nano™) 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot 1 x Micro SD slot |
| Memory | 1 x 4GB 64-bit LPDDR4 onboard |
| GPU / Graphics | NVIDIA Maxwell™ GPU architecture with 128 NVIDIA CUDA® cores |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 |
| USB 3.0 | 1x USB 3.0 1 x Micro USB for image flash |
| Serial | |
| Video | 1 x HDMI 2.0 with 4K2K supported |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet (Via Jetson Nano™) 1 x 10/100/1000 Mbps PoE (Intel® i210-IT ;max. up to 15W) |
| Other Ports | 1 x Recovery switch 1 x Reset button 1 x Power button 1 x 12 VDC power input connector 2 x SMA-type antenna connector |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x SIM slot |
| Operating System | |
| Operating System | Linux Ubuntu 18.04 |
| Power | |
| DC Input / Source Voltage | 12 VDC screw type |
| Operating Temperature | |
| Operating Temperature | -30°C ~ +60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1 kg |
| Dimensions | 147.4 x 129.8 x 34.6 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum , IP42 |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, FCC certified |
| Cooling | Fanless |
|---|
