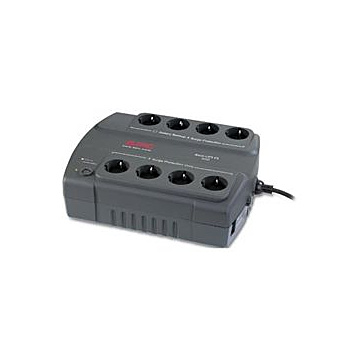

APC Back-UPS ES 400VA/240W
SKU
be400-gr
Not available
100.20EUR 79.84EUR
Output capacity 240W/400VA, AC 230V. Recharging time 16h. Backup time with full load 5,2min (240W). Status display, alarm buzzer. Perfect for video surveillance!
Details
*Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that
require battery back-up while providing surge only protection for less
critical equipment
*Power conditioning
Protects connected loads from surges, spikes, lightning, and other power
disturbances.
*Data line surge protection
Provides protection of connected equipment from power surges on the
data lines.
*Safety-agency approved
Ensures the product has been tested and approved to work safely with the
connected service provider equipment and within the specified
environment. UL, FCC, CE, C-Tick approvals.
*Audible Alarms
Provides notification of changing utility power and UPS conditions.
*Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs
to be replaced.
*Cold-start capable
Provides temporary battery power when the utility power is out.
*Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while
batteries are being replaced
*Resettable circuit breakers
Enables a quick recovery from overload events.
*Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access
to other receptacles.
Reserves power capacity and run time for connected equipment that
require battery back-up while providing surge only protection for less
critical equipment
*Power conditioning
Protects connected loads from surges, spikes, lightning, and other power
disturbances.
*Data line surge protection
Provides protection of connected equipment from power surges on the
data lines.
*Safety-agency approved
Ensures the product has been tested and approved to work safely with the
connected service provider equipment and within the specified
environment. UL, FCC, CE, C-Tick approvals.
*Audible Alarms
Provides notification of changing utility power and UPS conditions.
*Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs
to be replaced.
*Cold-start capable
Provides temporary battery power when the utility power is out.
*Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while
batteries are being replaced
*Resettable circuit breakers
Enables a quick recovery from overload events.
*Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access
to other receptacles.
Package includes
1x APC Back-UPS ES 400VA/240W
Specifications
| Output | |
| Output Power Capacity | 240 Watts / 400 VA |
| Max Configurable Power | 240 Watts / 400 VA |
| Nominal Output Voltage | 230V |
| Output Connections | (4pcs) Schuko CEE 7 (Battery Backup) (4) Schuko CEE 7 (Surge Protection) |
| Input | |
| Nominal Input Voltage | 230V |
| Input Frequency Input Connections | 50/60 Hz |
| Cord Length | 1.83 meters |
| Maximum Input Current | 10A |
| Batteries & Runtime | |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical recharge time | 16 hour(s) |
| RBC™ Quantity | 1 |
| Typical Backup Time | at Half Load 18.1 minutes (120 Watts) Typical Backup Time at Full Load 5.2 minutes (240 Watts) |
| Communications & Management | |
| Control panel | LED Status display with On Line : On Battery |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rating | 310 Joules |
| Filtering | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Dataline protection | RJ-45 Modem/Fax/DSL/10-100 Base-T protection |
| Physical | |
| Maximum Height | 86.00 mm |
| Maximum Width | 230.00 mm |
| Maximum Depth | 285.00 mm |
| Net Weight | 5.40 KG |
| Shipping Weight | 5.60 KG |
| Shipping Height | 132.00 mm |
| Shipping Width | 300.00 mm |
| Shipping Depth | 366.00 mm |
| Master Carton Units | 2.00 |
| Master Carton Weight | 12.20 KG |
| Color | Charcoal |
| SCC Codes | 1073130423336 |
| Environmental | |
| Operating Environment | 0 - 40 °C |
| Operating Relative Humidity | 0 – 95% |
| Operating Elevation | 0-15000 meters |
| Storage Temperature | 0 - 40 °C |
| Storage Relative Humidity | 0 – 95% |
| Storage Elevation | 0-15000 meters |
| Audible noise at 1 meter from surface of unit 45.00 dBA |
