CAPA55R
SKU
CAPA55R-xx
Lead time 21-30 days

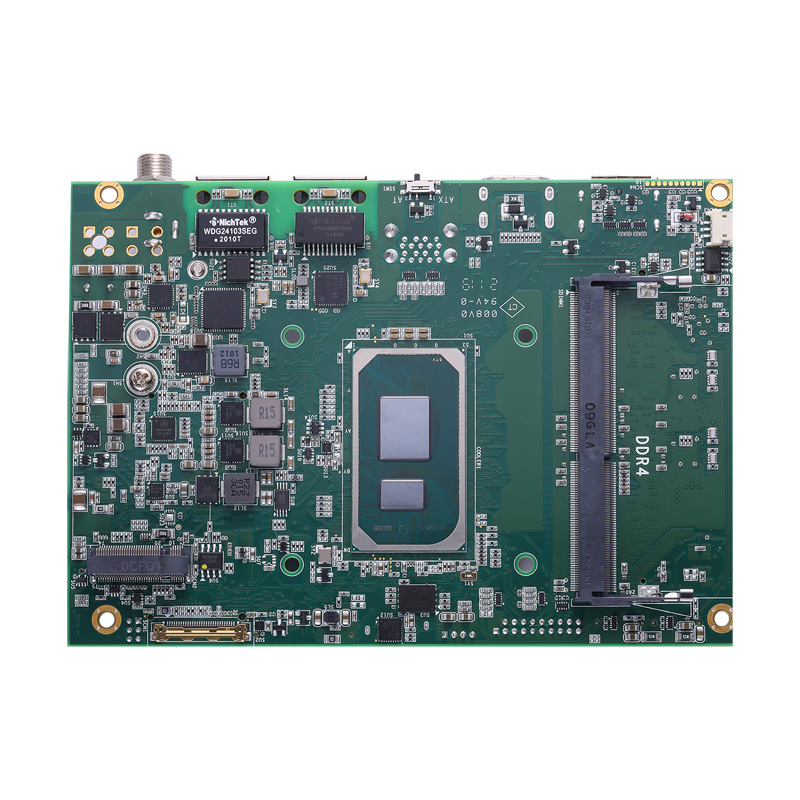

3.5” Embedded SBC with 11th Gen Intel® Core™ i7/i5/i3, Celeron® Processor, DisplayPort++, HDMI, LVDS, 1 GbE LAN and 2.5 GbE LAN
- 11th gen Intel® Core™ i7/i5/i3 & Celeron® Processor
- 2 DDR4 SO-DIMM for up to 64GB of memory
- GbE LAN and 2.5 GbE LAN ports
- 3 M.2 expansion slot
| Form Factor | |
| Form Factor | 3.5” SBC |
| System | |
| Processor | Intel® Core™ i7-1185G7E , 4-Core, 1.8Ghz Intel® Core™ i5-1145G7E, 4-Core 1.50Ghz Intel® Core™ i3-115G4E, 2-Core 2.20Ghz Intel® Celeron 6305E , 2-Core 1.8Ghz |
| Integrated Graphics | Intel® Iris® Xe graphics (i7 , i5) Intel UHD Graphics (i3, Celeron) |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | 1 x SATA-600 |
| Storage Support | |
| Memory | 2 x 260 Pin DDR4 SO-DIMM, max 64GB |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 |
| USB 3.1 | |
| USB 3.2 | 3 x USB3.2 |
| Serial | 2 x RS-232/422/485 |
| Video | 1 x HDMI 1.4 1 x Display Port++ LVDS 2ch 24bit |
| Ethernet | 1 x 10/100/1000 Mbps (Intel i210AT) 1 x 10/100/1000/2500 Mbps (Intel i225LM) |
| Other Ports | 1 x DIO Audio |
| Expansion | |
| Expansion Interface | 1 x M.2 Slot E-Key 2230 1 x M.2 Slot B-Key 3042/3050 1x SIM (via pin header) 1 x M.2 Slot M-Key 2080 (SSD) MIO extension |
| Operating System | |
| Operating System | Windows 10, Linux |
| Power | |
| DC Input / Source Voltage | 19-24V DC Input |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -20°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 146 x 102 mm |
| Certification | |
| Certification | CE |
| Socket | SoC |
|---|---|
| Form Factor | 3.5" Embedded |
