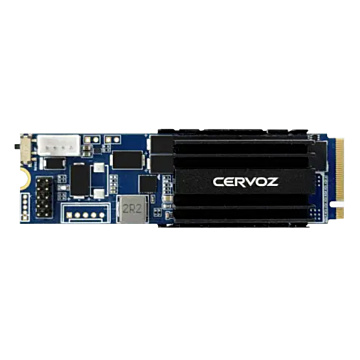

960GB M.2 2280 SSD, NVME, Military, T459 Cervoz, Wide-Temp
SKU
CIE-M8T459MOH960GW
Lead time 21-30 days
Industrial M.2 2280 Embedded Module - T459
- Compliant with PCIe Gen 4x4 interface
- Compliance: NVMe 2.0/ PCI Express Base 4.0
- 3D TLC flash memory
- Capacity: 120GB ~ 1920GB
- MIL-STD-810H Compliant
- Multi-Layered Data Security (Write Protection/Quick Erase/ Physical Destroy)
- Over-provisioning technology
- Safeguard & Circuitguard
- Anti-Vibration Fill
| Form Factor | |
| Form Factor | M.2 PCIe 2280 |
| Product grouping | Industrial M.2 2280 Embedded Module |
| System | |
| Interface | PCIe Gen4x4 |
| Connector & Form factor | M.2 2280 (M-key) |
| NAND Flash type | 3D TLC |
| Capacity | 120GB – 1920GB |
| Sequential Read | up to 5080MB/s |
| Sequential Write | up to 4765 MB/s |
| DRAM buffer | no |
| ECC Scheme | LDPC |
| MTBF | >3 000 000 h |
| Supply Voltage | 3.3V DC |
| Dimensions | 80mm x 22mm x2.2mm |
| Specialty Technology | MIL-STD-810H Compliant Multi-Layered Data Security (Write Protection/Quick Erase/ Physical Destroy) Over-provisioning technology |
| Environmental | |
| Operating Temp | Wide : -40°C ~ 85°C |
| Manufacturer / Brand | Cervoz |
|---|---|
| Capacity | 960GB |
| Interface (Connector) | M.2 M-key |
| Data Interface | NVMe /PCIe Gen4x4 |
| Operating Temp | Extreme Wide Temp -40..85C |
