CO-W121C
SKU
CO-W121C
Lead time 21-30 days

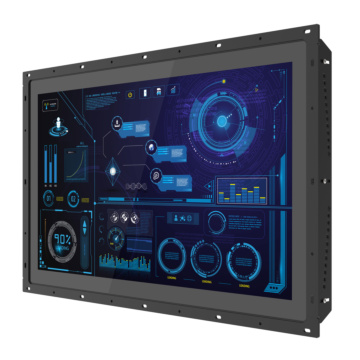

21.5" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch
- 21.5" TFT-LCD with Projected Capacitive Touch
- Cincoze Patent CDS Technology Support
- Designed with Adjustable Mounting Bracket
- Support Flat / Standard / VESA / Rack Mount
- Front Panel IP65 Compliant
- Wide Operating Temperature
| Display | |
| Screen Size | 21.5" TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::9 |
| Contrast Ratio | 5000 ::1 |
| Brightness | 300 nits |
| Viewing Angle | 178 (H) / 178 (V) |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | PCAP |
| I/O Ports | |
| Video | with Monitor or PC module (CDS) |
| Other Ports | |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | |
| Power Management | |
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | 0ºC to 70ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 7.2 kg |
| Dimensions | 550 x 343.7 x 63.3mm |
| Enclosure | |
| Bezel | |
| Material | Steel |
| Mounting | Flat / Standard/ VESA/ Rack mount |
| Protection | Front Panel IP65 Compliant * According to IEC60529 |
| Certification | |
| Certification | CE / FCC |
| Manufacturer / Brand | Cincoze |
|---|---|
| Display Size | 21.5" |
| Touch type | Projected Capasitive (PCAP) |
| Signal input | CDS |
