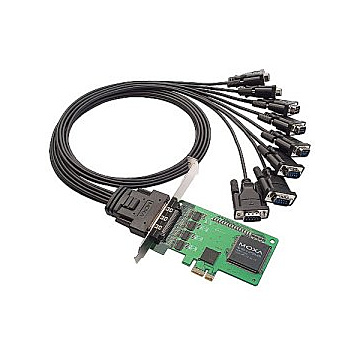

Moxa CP-168EL RS-232 Multiport Serial Board

Lead time 4-22 days
SKU
CP-168EL
8-port RS-232 PCI Express Smart Serial Board.
Details
Moxa CP-168EL is a Smart PCI Express Multiport Serial Board designed for POS and ATM
applications, and for use by industrial automation system manufacturers and system integrators.

Moxa CP-168EL is compatible with all popular operating systems, and each of its
8 RS-232 serial ports supports data rates of up to 921.6 Kbps, and provides full
modem control signals, ensuring compatibility with a wide range of serial peripherals.

Main Features:

* Fits any PCI Express slot
* PCI Express x1 compliant
* Serial communication speed up to 921.6 Kbps
* 128-byte FIFO and on-chip H/W, S/W flow control
* Various connection cables/boxes
* Low profile board for compact-sized PCs
* Windows 2003/XP/2000, Linux, Unix driver support
* On-board 15 KV ESD protection
Package includes
1 x Moxa CP-168EL board with standard bracket, and Low Profile bracket
1 x Document & Software CD-ROM
1 x Quick Installation Guide
Specifications
Hardware

* Connectors: SCSI VHDCI 68
* Comm. Controller: MU860 (16C550C compatible)

Interface

* Bus Interface: PCI Express x1
* Number of Ports: 8 (only one IRQ required)
* Max. No. of Boards: 4

Performance

* Baudrate: 50 bps to 921.6 Kbps

Configuration

* Data Bits: 5, 6, 7, 8
* Stop Bits: 1, 1.5, 2
* I/O address/IRQ: BIOS assigned
* Parity: None, Even, Odd, Space, Mark
* Flow Control: RTS/CTS, XON/XOFF

Power and Environment

* Power Requirement: 630 mA (3.3V)
* Operating Temperature: 0 to 55°C
* Operating Humidity: 5 to 95% RH
* Storage Temperature: -20 to 85°C
* Surge Protection: Embedded 15 KV ESD Surge Protection
* Regulatory Approvals: EN55022 Class B, EN55024, EN6100-3-2, EN61000-3-3, FCC Part 15 Class B

For further information download the datasheet (above) or manual (below).
