CS-W115FH 15.6" TFT, Hi-Brightness, PCAP touch
SKU
CS-W115FH
Lead time 21-30 days

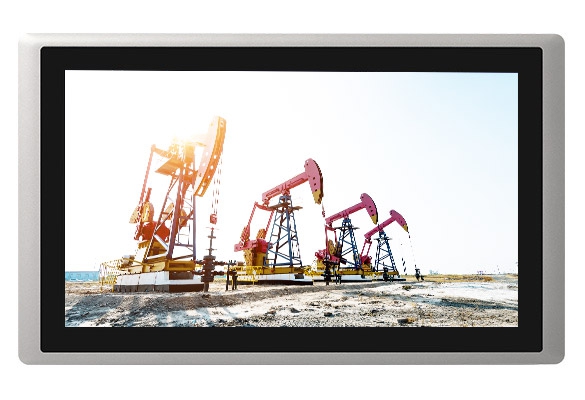

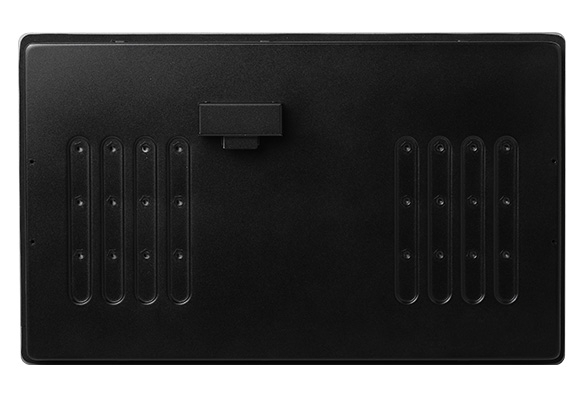

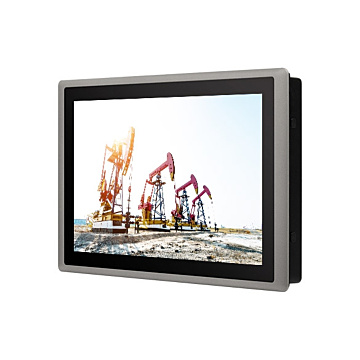

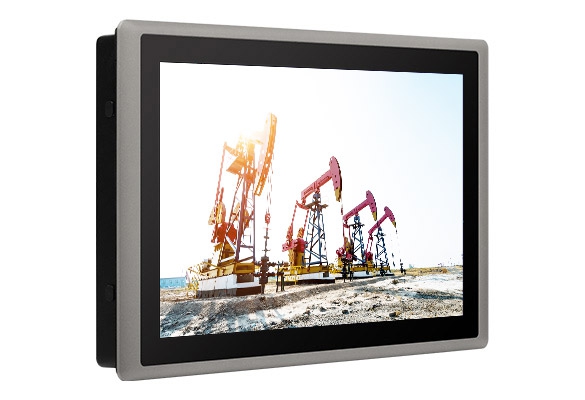

15.6" TFT-LCD Sunlight Readable Display Module with Projected Capacitive Touch
- 15.6" TFT-LCD with Projected Capacitive Touch
- Ultra High Brightness up to 1,200 nits and 1920x1080 (Full HD) Resolution
- Wide Range Operating Temperature
- True Flat IP65 Front Panel Protection
- Flat Rugged Aluminum Die-casting Bezel
- Convertible Display System (CDS) Technology Supported
- Safety: UL, cUL, CB, IEC, EN 62368-1
| Display | |
| Screen Size | 15.6" TFT LCD |
| Screen Resolution | 1920 x 1080 (FHD) |
| Display Ratio | 16 ::09 |
| Contrast Ratio | 800:1 |
| Brightness | 1200 nits |
| Viewing Angle | 178 / 178 degree |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| Video | According to CDS module (M-series monitor module or PC module) |
| Other Ports | |
| Operating Temperature | |
| Operating Temperature | -20ºC to 70ºC |
| Humidity Range | 10% to 90% non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 3.8 kg |
| Dimensions | 420 x 254 x 66 mm |
| Enclosure | |
| Bezel | IP65 front panel , Die-Casting flat surface |
| Material | Aluminium |
| Mounting | by CDS module |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A |
| Manufacturer / Brand | Cincoze |
|---|---|
| Display Size | 15.6" |
| Touch type | Projected Capasitive (PCAP) |
| Signal input | CDS |
