CV-221C-R10 21.5" TFT, PCAP touch & AG coating
SKU
CV-221C-R10
Lead time 21-30 days

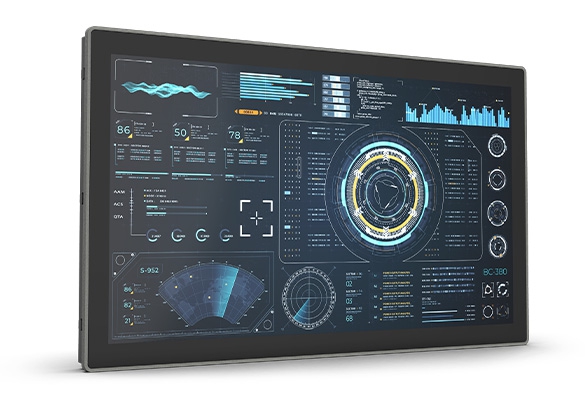

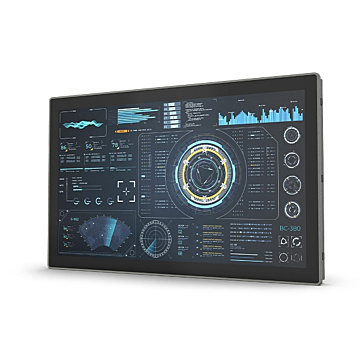

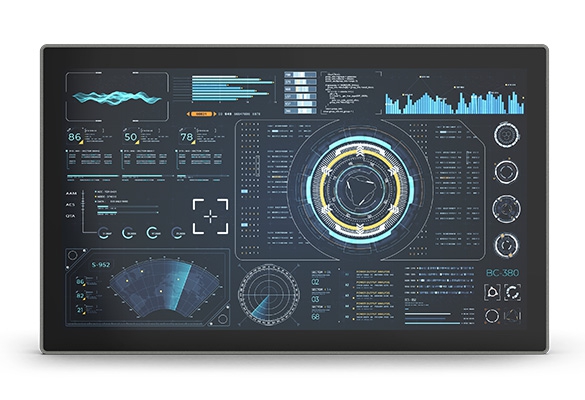

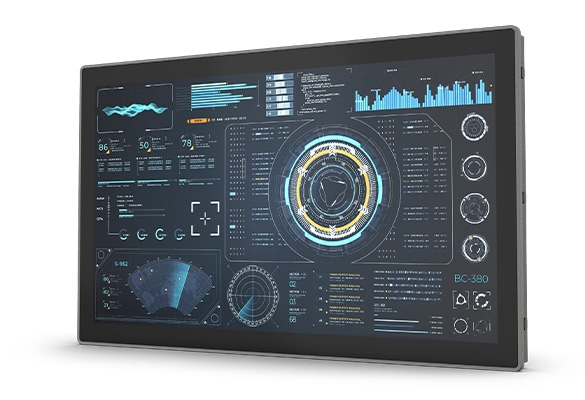

21.5" TFT Full HD 16:9 Slim Bezel Display Module with Projected Capacitive Touch & AG Coating
- 21.5" Full HD LCD (1920 x 1080) with 16:9 Aspect Ratio

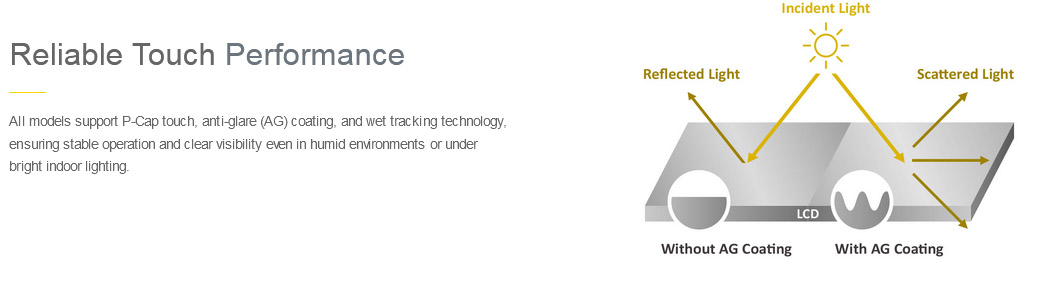

- Projected Capacitive Touch with Anti-Glare Coating.
- Wide Viewing Angle of 178°/178°
- Backlight Lifetime up to 50,000 hr
- Front IP66 Protection
- Support CDS Technology
| Display | |
| Screen Size | 21.5" TFT LCD |
| Screen Resolution | 1920x1080 (FHD) |
| Display Ratio | 16 ::9 |
| Contrast Ratio | |
| Brightness | 300 nits |
| Viewing Angle | 178/178 |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) Anti-Glare Wet Touch Tracking |
| I/O Ports | |
| Video | According to CDS module |
| Other Ports | |
| Operating Temperature | |
| Operating Temperature | -0ºC to 60ºC |
| Humidity Range | 10% to 95% non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 5,3 kg |
| Dimensions | 525 x 318,3 x 63,4 mm |
| Enclosure | |
| Bezel | IP65 front panel, flat surface |
| Material | Aluminum |
| Mounting | by CDS module |
| Note * | |
| Certification | |
| Certification | CE / FCC EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only) - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 |
| Manufacturer / Brand | Cincoze |
|---|---|
| Display Size | 21.5" |
| Touch type | Projected Capasitive (PCAP) |
| Signal input | CDS |
