DL-1021

SKU
DL-1021
Lead time 21-30 days

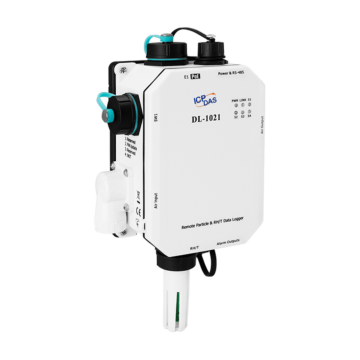

Remote PM1/2.5/10/CO/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 and PoE
  • Able to record PM1/2.5/10, CO, Temperature, Humidity, and Dew Point Measurements
  • Electrochemical Sensor
  • Up to 180,000 records with date and time stamps
  • Web-based Configuration Interface
  • Simple and Powerful Software Utility, iOS APP and Android App Included
  • Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
  • Includes RS-485/Ethernet/PoE Communication Interfaces
  • Relay Output for Audible/Visual Alarm or IAQ Device Control
  • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
  • IP 43 Protection Approval

The DL-1000 is a series of particle and gas measurement module that can measure the concentration of aerosols in the air, such as: PM2.5, PM1, PM10 and the number of particles (0.3μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm). In addition, various fume concentrations related to human health can also be measured. For example: CO/CO2/HCHO/NH3/H2S/TVOC DL-1000 can record data and send alarm when concentration is too high. It can be used to record PM1/2.5/10, CO, CO2, HCHO, TVOC, NH3, H2S, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 180,000downloadable records. Real-time data can be accessed from the DL-1000 series Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol-MQTT. The DL-1000 series Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system. The DL-1000 series is designed for industrial applications in harsh environments that provides IP43 grade protection approval. The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.

More Information
Manufacturer / BrandICP DAS
ConnectionModbus TCP & RTU
Type of SensorParticle & Fume & TH
