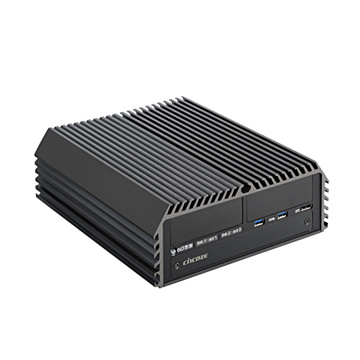

DS-1200

SKU
DS-1200-v1
Lead time 21-30 days
  • Supports 9/8th Gen Intel® Core™ 35W/65W LGA 1151 Processors
  • 2x DDR4 SO-DIMM Socket, Supports Up to 2666MHz, 64GB
  • Triple Independent Displays: 1x DVI-I and 2x DP (4K Resolution)
  • 1x M.2 2280 M Key Socket, Auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
  • 2x Front Accessible SIM Card Slots for Signal Redundancy
  • 4x CMI Slots for Modular I/O Expansions
  • 1x CFM Slot for Power Ignition Sensing Function
  • Wide Operating Temperature (-40°C to 70°C )
  • EN50121-3-2 Certified/ LVD EN62368-1
Customize DS-1200
DS-1200

* Required Fields

Your Customization
DS-1200
DS-1200

EUR0.00

Summary
    Ominaisuudet
    * Supports 8th Gen Intel® Core™ / Pentium® / Celeron® Hexa Cores 35W/65W LGA 1151 Processors
    * 2x DDR4 SO-DIMM Socket, Supports Up to 2666MHz, 32GB
    * Triple Independent Displays: 1x DVI-I and 2x DP (4K Resolution)
    * 1x M.2 2280 M Key Socket, Auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
    * 2x Front Accessible SIM Card Slots for Signal Redundancy
    * 4x CMI Slots for Modular I/O Expansions
    * 1x CFM Slot for Power Ignition Sensing Function
    * Wide Operating Temperature (-40°C to 70°C )
    * EN50155 (EN50121-3-2) Certified
    Spesifikaatiot
    System
    Processor 8th gen Intel® Core™, 35 ~ 65W
    CPU Performance
    Security Hardware
    Chipset Intel® Q370
    Storage 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
    1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)
    3x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable
    Storage Support
    Memory 2 x DDR4 SO-DIMM slot, up to 32GB
    Graphics Intel® UHD 630 Graphics supports triple independent display
    I/O Ports
    USB 2.0 2 x USB2.0
    USB 3.0 4x USB 3.0
    2x USB 3.1
    Serial 2x RS-232/422/485
    Optional CMI Module:
    -4x Isolated COM Module
    -4x COM Moduled
    Video 1 x DVI-I, 2 x DP
    Ethernet 2x GbE LAN , RJ-45
    Optional CMI Module:
    - 4x RJ45 GbE LAN Module (Intel® I210AT)
    - 4x M12 GbE LAN Module (Intel® I210AT)
    Other Ports Mic-in/Line-out
    1x PS2 keyboard/mouse
    1x Remote Power On/Off Connector
    1x Remote Reset Connector
    Expansion
    Expansion Interface 1x CFM Interface (Control Function Module)
    2x CMI (Combined Multiple I/O) High Speed Interface
    2x CMI (Combined Multiple I/O) Low Speed Interface
    3x Full-size Mini-PCIe Sockets
    2x SIM Socket
    Operating System
    Operating System Windows® 10
    Power
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD, 35W TDP CPU
    -40°C ~ +45°C with W.T. SSD, 65W TDP CPU
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 4.9 kg
    Dimensions 227 x 261 x 88 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE, FCC certified, EN50155, EN50121-3-2
    More Information
    CoolingFanless
    CPU FamilyCoffee Lake Refresh (9th Gen Core i3/i5/i7)
    Operating TempWide Temp -40..70C
