DSP522
SKU
DSP522
Lead time 21-30 days

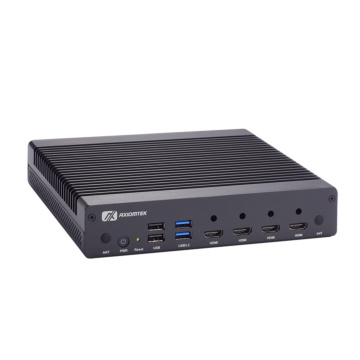

Digital Signage Player with Intel® Core™ i5-1335UE Processor and Intel® Processor U300E, 4 HDMI, 2 RS-232, and 2 LAN
- Intel® Core™ i5-1335UE processor and Intel® processor U300E
- 2 DDR5 SO-DIMM 5200 MHz, up to 96 GB
- 4 HDMI
- 1 1GbE LAN and 1 2.5GbE LAN
- 2 RS-232
| System | |
| Processor | |
| CPU Performance | Intel® Core™ i5-1335UE processor Intel® U300E processor |
| Security Hardware | FTPM 2.0 |
| Chipset | SoC |
| Storage | 1 x M.2 Key M 2280 slot (SATA & NVMe) |
| Storage Support | |
| Memory | Dual DDR5-5200 SO-DIMM, up to 96GB |
| Audio | 1 x Line Out |
| Graphics | 4 x HDMI 2.1 (TMDS), with cable lock design |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | 2x USB 3.2 |
| Serial | 2x RS-232 |
| Video | 4 x HDMI 2.1 (TMDS), with cable lock design |
| Ethernet | 1 x 1G LAN (Intel® I219LM) 1 x 2.5GbE LAN (Intel® I226-V) |
| Other Ports | Line-out 1x Remote Power On/Off Connector 4x Antenna opening |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 for Wi-Fi/BT 1 x M.2 Key B 3042/3052 for 4G/LTE/5G 1 x SIM card slot |
| Operating System | |
| Operating System | Windows® 10, Windows® 11 / LINUX |
| Power | |
| DC Input / Source Voltage | 12VDC |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +50°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.6 kg |
| Dimensions | 200 x 165 x 40 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Cooling | Fanless |
