DX-1200
SKU
DX-1200
Coming

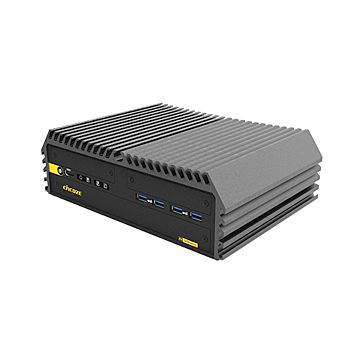

12th Gen. Intel® Core™ Series High Performance and Compact Rugged Embedded Computer
- Intel® 12th Gen Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
- 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB
- Quad Independent Display (HDMI / DP / DVI-I)
- 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
- CMI Technology for Optional I/O Module Expansions
- CFM Technology for Power Ignition Sensing & PoE Function
- Wide Operating Temperature -40°C to 70°C
- Safety Standard: CE, e-Mark, EN 62368-1
| System | |
| Processor | 12th Generation Intel® Alder Lake-S Series CPU |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel R680E Chipset |
| Storage | 2x 2.5" SATA HDD/SSD Bay (SATA 3.0) 2x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) Support RAID 0/1/5/10 |
| Memory | 2x DDR5 4800 MHz SO-DIMM Socket Supports Un-buffered and ECC Type, Up to 64GB |
| Graphics | Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.2 Gen2, Type A, 10Gbps 4x USB 3.2 Gen1, Type A, 5Gbps |
| Serial | 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| Video | 1 x DVI-I 1 x DisplayPort 1 x HDMI |
| Ethernet | 2x 10/100/1000 Mbps, RJ45 GbE1: Intel I219-LM GbE2: Intel I210 |
| Other Ports | Mic-in/Line-out 1x Remote Power On/Off Connector 1x Remote Reset Connector |
| Expansion | |
| Expansion Interface | 1x CFM Interface (Control Function Module) 2x High Speed CMI Interface for optional CMI Module Expansion 1x Low Speed CMI Interface for optional CMI Module Expansion 1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module 2x Full-size Mini-PCIe Sockets 1x SIM Socket |
| Operating System | |
| Operating System | Windows® 10 / Windows® 11 / LINUX |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, 35W TDP CPU -40°C ~ +55°C with W.T. SSD, 65W TDP CPU (With External Fan Kit) |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 3.5 kg |
| Dimensions | 242 x 173 x 75 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting / DIN-RAIL |
| Environment | |
| Relative Humidity | 40°C @ 95% RH (non-Condensing) |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A EN 50155 (EN 50121-3-2 Only) E-Mark EN 45545-2 |
| Manufacturer / Brand | Cincoze |
|---|---|
| Cooling | Fanless |
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -40..70C |
