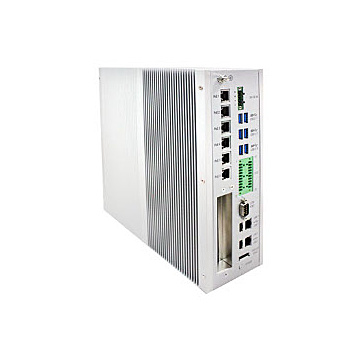

EAGLE-8701

Lead time 21-30 days
SKU
EAGLE-8701
Machine Vision Controller with 4th Generation Intel® Core Processors
Details
* 4th generation Intel® Haswell platform
* FAN-less (support max TDP = 45W Processor)
* 6 x PoE Gbe Ethernet w/ 802.3af Compliant designed for PoE camera
* 6 x USB3.0 combo ports designed for USB3.0 camera
* 1 x PCIex16 expansion for add-on card
* Optional 2 FANs with Smart-FAN control
* Raid 0/1 Support
Specifications
Processor Core Logic System

CPU:
Intel® Core™ i7-4770TE 2.3GHz processor
Intel® Core™ i5-4590T 2GHz processor

Chipset:
Intel Q87

System memory:
2 x 204-pin DDR3L SO-DIMM sockets, supporting 1600MHz SDRAM up to 16GB

Graphics
Integrated Intel® HD 4600

Ethernet
1 x Intel® i217LM PCIe controller w/ iAMT
1 x Intel® i210AT PCIe controller
6 x Intel® i210AT PCIe controller for PoE

I/O expansion
1x COM RS-232/422/485 Selectable
8 x RJ-45 ports for Gigabit Ethernet
6 x USB 3.0/ 2.0 ports
2 x USB 2.0
1 x DisplayPort connector
8 x DI, 8 x DO (1.5KV isolation protection)

Power Supply
DC 24V Input (w/ 4-pin terminal block, dual power-in)
180W Max.

Expansion Slot
1 x PCIex16

Storage
2 x SATA (RAID 0/1)

Mechanical
Construction:Aluminum alloy
Mounting: Wall-mount
Dimensions: 285 (W) x 230 (D) x 90 (H) mm


Environment Specifications
Operating Temp: -10 ~ 55°C , ambient w/ air flow
(with industrial hdd)
Storage Temp: -40 ~ 85°C
Relative Humidity: 10 ~ 95% @ 40°C (non-condensing)
