eBOX100-51R-FL
SKU
eBOX100-51R-FL
Lead time 21-30 days

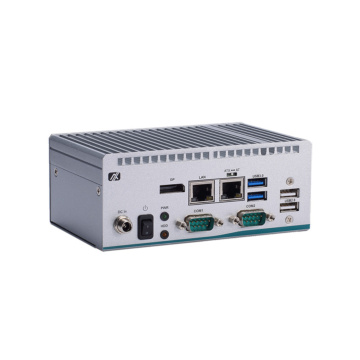

Fanless Ultra Compact Embedded System with Intel® Core™ i5-7300U & Intel® Celeron® 3965U Processor, DisplayPort++, 2 COM, 4 USB and 2 GbE LAN
| System | |
| Processor | Intel® Core™ i5-7300U 2.6 Ghz Intel® Celeron® 3965U 2.2 Ghz |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x M.2 Key B 2242 (for SATA storage) |
| Storage Support | |
| Memory | 1 x DDR4-2133 SO-DIMM, up to 16GB |
| Audio | |
| Graphics | 1 x DisplayPort++ |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 2x USB 3.0 |
| Serial | 2x RS-232/422/485 |
| Video | 1 x DisplayPort++ |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet (Intel® i219-LM, Intel® i211-AT) |
| Other Ports | 2x Antenna opening |
| Expansion | |
| Expansion Interface | 1 x M.2 Key B 2242 for Wi-Fi |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 12VDC 230V AC-DC Power Adapter (included) |
| Operating Temperature | |
| Operating Temperature | -10°C ~ +50°C (with Wide-Temp SSD) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 0.6 kg |
| Dimensions | 142 x 87 x 58 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Cooling | Fanless |
|---|---|
| CPU Family | Kaby Lake (7th 8th Gen Core i3/i5i7/Celeron) |
| Operating Temp | Wide Temp -10..50C |
