eBOX565-52R

SKU
eBOX565-52R
Lead time 21-30 days

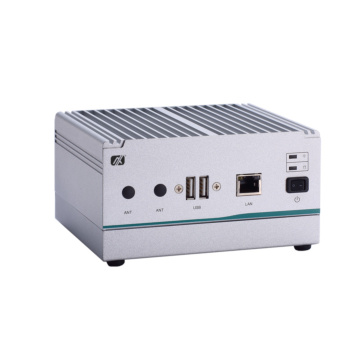

Fanless Embedded System with Intel® Core™ i5-8365UE/Celeron® 4305UE Processor, HDMI/DisplayPort++, 2 GbE LAN, 2 COM, 4 USB and 9-36VDC Power Input

  • 8th gen Intel® Core™ and Celeron® processor onboard (Whisky Lake-U )
  • One M.2 Key E 2230 for Wi-Fi module
  • 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
  • 2 GbE LAN and 2 USB 3.1 Gen2
  • Supports DisplayPort++ and HDMI for dual independent displays
  • Multiple mounting designs: Wall mount, DIN-rail and VESA mount
  • 9 to 36 VDC wide range input
Customize eBOX565-52R

* Required Fields

Your Customization
eBOX565-52R
eBOX565-52R

EUR0.00

Summary
    System
    Processor Intel® Core™ i5-8365UE, 1.6 GHz
    Intel® Celeron® 4305UE, 2.0 GHz
    Security Hardware
    Chipset SoC
    Storage 1 x 2.5" SATA HDD drive bay (max. up 9.5 mm height)
    Memory 1 x 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
    Audio n/a
    Graphics 1 x DisplayPort++
    1 x HDMI
    I/O Ports
    USB 2.0 2 x USB 2.0
    USB 3.0 2 x USB 3.1 Gen2
    Serial 2 x RS-232/422/485
    Video 1 x DisplayPort++
    1 x HDMI
    Ethernet 2 x 10/100/1000 Mbps Ethernet (Intel® i219-LM, Intel® i211-AT)
    Other Ports 1 x ATX power switch
    1 x AT/ATX quick switch
    1 x Phoenix type VDC power input connector
    2 x Antenna opening
    Expansion
    Expansion Interface 1 x M.2 Key E 2230 (for Wi-Fi)
    Operating System
    Operating System Windows® 10, LINUX
    Power
    DC Input / Source Voltage 12VDC
    Operating Temperature
    Operating Temperature -10°C ~ +50°C with W.T SSD/DRAM
    Humidity Range 10% ~ 90%, non-condensing
    Shock IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
    Vibration IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
    Cooling System / Thermal Solution
    Thermal Solution Passive
    Dimensions / Weight
    Weight (kg) 1.1 kg
    Dimensions 141.6 x 106 x 73 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting /DIN-rail kit
    Certification
    Certification CE
    More Information
    CoolingFanless
    CPU FamilyWhiskey Lake (8th Gen Core i3/i5/7) Mobile
