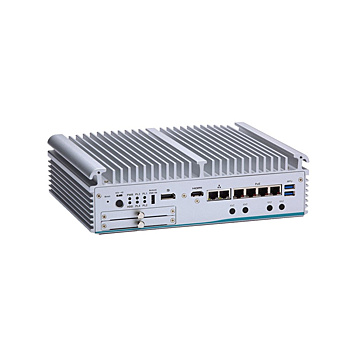

eBOX671-521-FL-DC

SKU
eBOX671-521-FL-DC-Q370
Lead time 21-30 days
Fanless System, 8th Gen Intel Core i7/i5/i3 Processor, Intel Q370, 4 PoE, 2 GbE LAN, 6 USB, 2COM, MXM graphics support, 24VDC
Details
* 8th gen Intel® Core™ i7/i5/i3 & Celeron® with Intel® Q370 chipset (Coffee Lake-S)
* 4-CH GbE PoE (IEEE802.3at)
* Dual swappable 2.5" SATA HDD drive bay
* Supports MXM graphics module (optional)
* DVI-I, HDMI, and DisplayPort with triple-view supported
Specifications
System
Processor LGA1151 8th gen Intel® Core™ i7/i5/i3 & Celeron® processors (35W/65W)
CPU Performance
Security Hardware
Chipset Intel® Q370
Storage 2 x 2.5" HDD drive bay
1 x mSATA
Storage Support
Memory 2 x 260-pin DDR4-2666 SO-DIMM, up to 32GB
Memory (RAM)
I/O Ports
USB 2.0 -
USB 3.1 4x USB 3.1 Gen2
2x USB 3.1 Gen1
Serial 2x RS-232/422/485
Display 2 x DisplayPort via MXM module (optional)
1 x HDMI
1 x DP
1 x DVI-I
Ethernet 2 x 10/100/1000 Mbps
4 x Gigabit PoE (IEEE 802.3at) port (max. up to 60W)
Other Ports
Operating System
Operating System Windows 10 Pro, Windows 10 IoT, Linux
Power
DC Input / Source Voltage 24V DC
Power Management
Expansion Slots
Expansion 2 x Full-size PCI Express Mini Card slot (USB + PCIe signal)
2 x SIM slot


Operating Temperature
Operating Temperature -20°C to 60°C (with W.T. DRAM & SSD, CPU TDP 35W)
-20°C to 50°C (with W.T. DRAM & SSD, CPU TDP 65W)
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 4.8 kg
Dimensions 280 x 210 x 80.5 mm
Enclosure
Bezel
Material Aluminum/ Plastic
Mounting Wall mount kit, DIN-rail kit
Vibration IEC 60068-2-64 (w/SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
