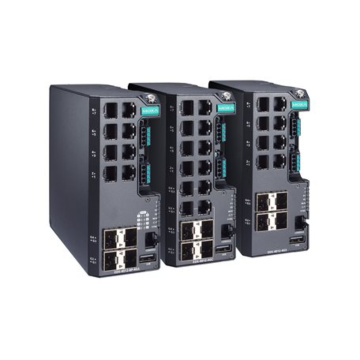

EDS-4012 Series

SKU
EDS-4012
Lead time 21-30 days

8+4G-port managed Ethernet switches with an 8 802.3bt PoE port option

  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
  • Support for IEEE 802.3bt PoE for up to 90 W output per port
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and RSTP/STP for network redundancy
  • Wide range of power input options for flexible deployment
  • Compact and flexible housing design to fit into confined spaces
  • Supports MXstudio for easy, visualized industrial network management
Customize EDS-4012 Series

* Required Fields

Your Customization
EDS-4012 Series
EDS-4012 Series

0.00EUR

Summary
  • Model:
    1 x EDS-4012-4GS-LV
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) EDS-4012-4GS-LV/-HV/-T models: 8
EDS-4012-4GC-LV/-HV/-T models: 8
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
PoE Ports (10/100BaseT(X), RJ45 connector)
EDS-4012-8P-4GS-LVA/-LVB/-T models: 8
100/1000BaseSFP Ports EDS-4012-4GS-LV/-HV/-T models: 4
EDS-4012-8P-4GS-LVA/-VB/-T models: 4
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP) EDS-4012-4GC-LV/-HV/-T models: 4
100BaseFX Ports (single-mode SC connector)

EDS-4008-SSC-LV/-HV/-T models: 2
Standards IIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication
Ethernet Software Features
Industrial Protocols EtherNet/IP
Modbus TCP
PROFINET IO Device
Management Ipv4/IPv6
Flow control
Back Pressure Flow Control
DHCP Server/Client
ARP
RARP
LLDP
Fiber check
Port Mirroring (SPAN, RSPAN)
Linkup Delay
SMTP
SNMP Trap
SNMP Inform
SNMPv1/v2c/v3
RMON
TFTP
SFTP
HTTP
HTTPS
Telnet
Syslog
Private MIB
Filter
GMRP
GVRP
GARP
802.1Q VLAN
IGMP Snooping v1/v2/v3
IGMP Querier
Redundancy Protocols STP
RSTP
Turbo Ring v2
Turbo Chain
Ring Coupling
Dual-Homing
Link Aggregation
MRP
MSTP
Switch Properties
MAC Table Size 16 K
Packet Buffer Size 1 Mb
Max. No. Of VLANs 256
Power Parameters
Connection 2 removable 4-contact terminal block(s)
Pre-installed Power Module -LV/-LV-T models: PWR-100–LV
-HV/-HV-T models: PWR-105-HV-I
-LVA/-LVA-T models: PWR-101-LV-BP-I
-LVB/-LVB-T models: PWR-103-LV-VB-I
Input Voltage -LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs
-HV/-HV-T models: 110/220 VDC/VAC, Single input
-LVA/-LVA-T models: 48 VDC, Redundant dual inputs
-LVB/-LVB-T models: 12/24/48 VDC, Redundant dual inputs
Operating Voltage -LV/-LV-T models: 9.6 to 60 VDC
-HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC
-LVA/-LVA-T models: 44 to 57 VDC (>52 VDC for PoE+ output recommended)
-LVB/-LVB-T models: 12 to 57 VDC (>52 VDC for PoE+ output recommended)
Physical
Dimensions 55 x 140 x 120 mm
Installation Din-rail mounting
Wall mounting (optional)
Housing Metal
Environmeltal
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
