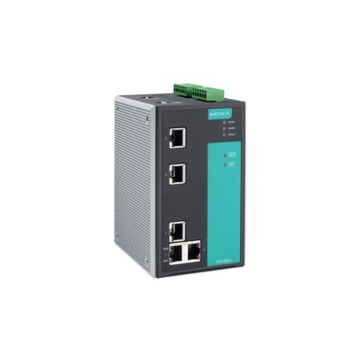

5-port managed Ethernet switches

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector) EDS-505A/505A-T: 5
EDS-505A-MM-SC/MM-ST/SS-SC Series: 3

All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.1X for authentication
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
Filter 802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP
Industrial Protocols EtherNet/IP, Modbus TCP
Redundancy Protocols STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2
Switch Properties
Processing Type
MAC Table Size 8 K
Packet Buffer Size 1 Mbits
Max. No. Of VLANs 64
Power Parameters
Connection 2 removable 6-contact terminal block(s)
Input Current

EDS-505A/EDS-505A-T: 0.21 A @ 24 VDC
EDS-505A-MM-SC/MM-ST/SS-SC Series: 0.29 A @ 24 VDC
Input Voltage 12/24/48 VDC, Redundant dual inputs
Power Budget -
Physical
Dimensions 80.2 x 135 x 105 mm
Installation Din-rail mounting
Wall mounting (optional)
Housing Metal
More Information
Managed EthManaged
Fiber OptionMulti-mode
PoE OptionNone
Manufacturer / BrandMoxa
