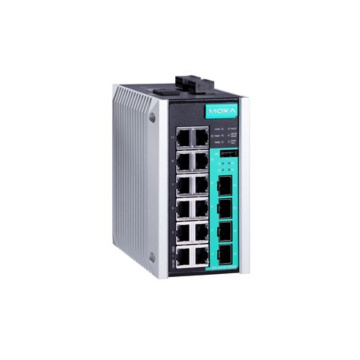

EDS-G516E

SKU
EDS-G516E-x
Lead time 21-30 days

16G-port full Gigabit managed Ethernet switches

  • Up to 12 10/100/1000BaseT(X) ports and 4 100/1000BaseSFP ports
  • Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security
  • Security features based on IEC 62443
  • EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector) 12
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100/1000BaseSFP Slots 4
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
Filter 802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP
Industrial Protocols EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave)
Redundancy Protocols Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Switch Properties
Processing Type
MAC Table Size 8 K
Packet Buffer Size 4 Mbits
Max. No. Of VLANs 256
Power Parameters
Connection 2 removable 4-contact terminal block(s)
Input Current 0.39 A @ 24 VDC
Input Voltage 12/24/48/-48 VDC, Redundant dual inputs
Power Budget -
Physical
Dimensions 79.2 x 135 x 137 mm
Installation Din-rail mounting
Wall mounting (optional)
Housing Metal
More Information
Managed EthManaged
Fiber OptionSFP
PoE OptionNone
Manufacturer / BrandMoxa
