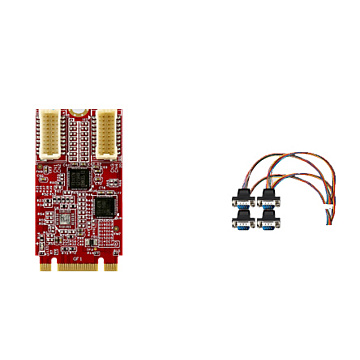

M.2 2242 to Four RS-232 Module, Vertical Connector / Wide Temperature
SKU
EGP2-X403-W1
Lead time 21-30 days
M.2 2242 to Four RS-232 Module, Vertical Connector / Wide Temperature
- 4800bps to 921.6Kbps serial data rate
- PCI Express base spec 1.1 compliant
- Compatible with 16C550 / 16C650 / 16C750 / 16C850 / 16C950, 128-byte FIFOs
- Full RS-232 functions with DB9 connector
- Alternative vertical or horizontal connector
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Operating temperature from -40°C to 85°C
| Spec | |
| Interface | M.2 2242 B+M Key |
| Controller | - |
| Function | Serial |
| Input I/F | PCI Express 1.1 x1 |
| Output Port | 4 |
| Output Connector | DB9 |
| Output I/F | RS-232 |
| Vibration /Shock | 5G @ [7~2000Hz] 50G@0.5ms |
| Temperature | Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| OS Supoort | Windows : 10 (32 / 64bit) and above version Linux : Kernel 2.6.8 and above (Native CDC-ACM driver), Kernel 2.6.38 and above (SocketCAN Driver), 32 / 64bit |
| PCB Dimension | 22x42x 7mm |
| Notes | - |
| Manufacturer / Brand | Innodisk |
|---|
