EGPC-B2S1-W1

SKU
EGPC-B2S1-W1
Lead time 14-22 days

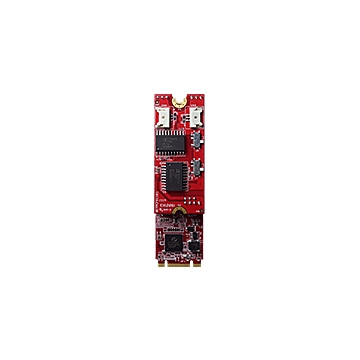

M.2 2280 to dual isolated CAN bus Module

  • Compliant with PCI Express 1.1
  • Meet the Requirements of the ISO 11898-1
  • CAN bus 2.0B backward compatible with 2.0A
  • Support baud rate 10/20/50/100/250/500/800/1000K
  • Support CAN message acceptance filter
  • Support Linux SocketCAN
  • Support SAE J1939/CANopen high layer protocol (Optional)
  • Compliant with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
  • Compliant with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
  • Termination resistor enabled/disabled by switch
  • 30μ” golden finger, 3-year warranty
  • Industrial Temperature (-40°C to +85°C) support
Form Factor
Form Factor M.2 2280 B-M
Module type M.2 2280 to dual isolated CANbus 2.0B module
System
Funtion CANbus
Input Interface PCI Express 1.1
Output Interface CANbus 2.0B
Output connector DB-9 x 2
Dimensions 22 x 80 x 4.85
Temperature Operation: W/T temp: -40°C ~ +85°C
Storage: -55°C ~ +95°C
Environment Vibration: 5G @7~2000Hz
Shock: 50G @ 0.5ms
More Information
I/OCAN bus
ConnectionM.2
