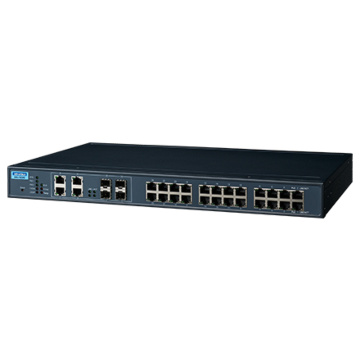

EKI-7428G-4CI

SKU
EKI-7428G-4CI
Lead time 21-30 days
24GE+4G Combo Managed Ethernet Switch, -40~70℃

  •  24 x Gigabit ports + 4 x Gigabit Copper/SFP combo ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
  • IXM function enables fast deployment
  • Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
  • 48VDC power input (46-57 VDC for POE af , 53 -57 VDC is recommended for at) and 2 relay output
  • -40 ~ 70°C wide-range operating temperature
Ethernet Communication
Port Number 24
RJ-45 Port Connector 24 x RJ-45
4 x RJ-45/SFP combo ports
RJ-45 Transmission speed 10/100Mbps / 10/100/1000Mbps
RJ-45 Transmission Distance 100m
Fiber Port Interface SFP
Fiber Transmission Speed 100/1000 Mbps
Fiber Transmission Distance Up to 110 km
Certification
Ethernet Standard IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az, 802.3z, 802.3af/at
EMI CE, FCC Class A
EMC EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration IEC 60068-2-6
Power
Power Input 12-48 VDC
Operating Current
Consumption 20W

PoE Information
PoE Port Number -
PoE Output
PoE Budget
Switch Properties
MAC Table Size 8K
Packet Buffer Size 4.1M bit
Switch Fabric Speed 5.6Gbps
Jumbo Frame 9,216 bytes
Mechanical
Dimension 438 x 43.8 x 259.2mm
IP Rating IP30
Enclosure Metal
Weight 3.8kg
Mounting 1U 19” Rack Mount
Environment
Operating Temp -40 ..70C
Storage Temp -40 ..85C
Relative Humidity 10-95%
More Information
Managed EthManaged
Fiber OptionSFP
PoE OptionNone
Manufacturer / BrandAdvantech
