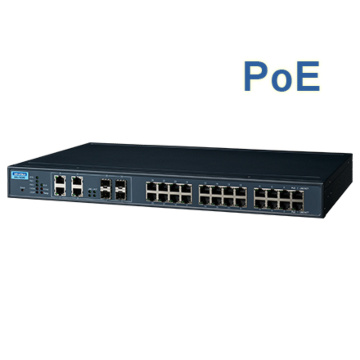

EKI-7428G-4CPI

SKU
EKI-7428G-4CPI
Lead time 21-30 days
24GE PoE and 4G Combo Managed Ethernet Switch, IEEE802.3af/at, 19" Rackmount, -40~75℃, 46~57VDC



  • 24 x IEEE 802.3 af/at PoE Gigabit ports + 4 x Gigabit Copper/SFP combo ports, provide up to 30Watts per port
  • SFP socket for Easy and Flexible Fiber Expansion
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
  • IXM function enables fast deployment
  • Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
  • 48VDC power input (46-57 VDC for POE af , 53 -57 VDC is recommended for at) and 2 relay output
  • -40 ~ 70°C wide-range operating temperature
Ethernet Communication
Port Number 24
RJ-45 Port Connector 24 x RJ-45
4 x RJ-45/SFP combo ports
RJ-45 Transmission speed 10/100Mbps / 10/100/1000Mbps
RJ-45 Transmission Distance 100m
Fiber Port Interface SFP
Fiber Transmission Speed 100/1000 Mbps
Fiber Transmission Distance Up to 110 km
Certification
Ethernet Standard IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az, 802.3z, 802.3af/at
EMI CE, FCC Class A
EMC EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration IEC 60068-2-6
Power
Power Input 24-48 VDC
Operating Current
Consumption 20W


PoE Information
PoE Port Number 24
PoE Output 25.5W
PoE Budget 685W
Switch Properties
MAC Table Size 8K
Packet Buffer Size 4.1M bit
Switch Fabric Speed 5.6Gbps
Jumbo Frame 9,216 bytes
Mechanical
Dimension 438 x 43.8 x 259.2mm
IP Rating IP30
Enclosure Metal
Weight 3.8kg
Mounting 1U 19” Rack Mount
Environment
Operating Temp -40 ..70C
Storage Temp -40 ..85C
Relative Humidity 10-95%
More Information
Managed EthManaged
Fiber OptionSFP
PoE OptionPoE Ports
Manufacturer / BrandAdvantech
