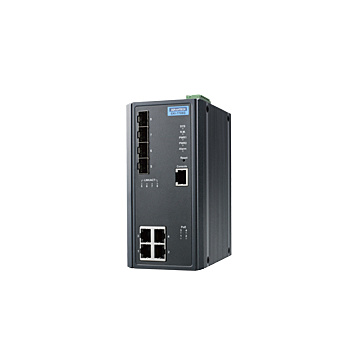

EKI-7708G-4FP

SKU
EKI-7708G-4FP-AE
Lead time 21-30 days

4GE PoE / PoE+ and 4G SFP Managed Ethernet Switch, IEEE802.3af/at, 46~57VDC

  • 4 x IEEE 802.3 af/at PoE Gigabit ports + 4 SFP ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • NEMA TS2 for Traffic Control
  • EN50121-4 approval for Railway trackside deployment
  • Dual 48 VDC power input and 1 relay output
Ethernet Communication
Port Number 8
RJ-45 Port Connector 4 x RJ-45 + 4 x SFP ports
RJ-45 Transmission speed 10/100/1000Mbps
RJ-45 Transmission Distance 100m
Fiber Transmission Distance Up to 110 km
Certification
Ethernet Standard IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at
EMI CE, FCC Class A
EMC EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2
Shock
IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Power
Power Input 48 VDC
Operating Current 0.25A @ 48VDC (system)
Consumption 12.1W


PoE Information
PoE Port Number 4
Switch Properties
MAC Table Size 8K
Packet Buffer Size 4.1M bit
Switch Fabric Speed 16Gbps
Jumbo Frame 9,216 bytes
Mechanical
Dimension 74 x 152 x 105mm
IP Rating IP30
Enclosure Metal
Weight 1.1kg
Mounting DIN-rail, Wall
Environment
Operating Temp -10 ..60C
Storage Temp -40 ..85C
Relative Humidity 10-95%
More Information
Managed EthManaged
Fiber OptionSFP
PoE OptionPoE Ports
Manufacturer / BrandAdvantech
