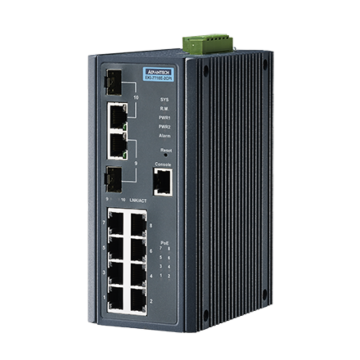

EKI-7710E-2CPI-AE

SKU
EKI-7710E-2CPI-AE
Lead time 21-30 days

8FE PoE and 2G Combo Managed Ethernet Switch, IEEE802.3af/at, 24~48VDC, -40~75℃

  • 8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 2 x Gigabit Copper/SFP combo ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
  • -40 ~ 75°C wide-range operating temperature (EKI-7710E-2CPI)
  • Dual 24~48 V DC power input and 1 relay output
Ethernet Communication
Port Number 10
RJ-45 Port Connector 8 x RJ-45
RJ-45 Transmission speed 10/100Mbps / 10/100/1000Mbps
RJ-45 Transmission Distance 100m
Fiber Port Interface SFP
Fiber Transmission Speed 100/1000 Mbps
Fiber Transmission Distance Up to 110 km
Certification
Ethernet Standard IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at
EMI CE, FCC Class A
EMC EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration IEC 60068-2-6
Power
Power Input 24-48 VDC
Operating Current 0.25A @ 48VDC (system)
Consumption 12.1W


PoE Information
PoE Port Number 8
PoE Output -
PoE Budget -
Switch Properties
MAC Table Size 8K
Packet Buffer Size 4.1M bit
Switch Fabric Speed 5.6Gbps
Jumbo Frame 9,216 bytes
Mechanical
Dimension 74 152 x 105mm
IP Rating IP30
Enclosure Metal
Weight 1.2kg
Mounting DIN-rail, Wall
Environment
Operating Temp -10 ..60C
Storage Temp -40 ..85C
Relative Humidity 10-95%
More Information
Managed EthManaged
Fiber OptionSFP
PoE OptionPoE Ports
Manufacturer / BrandAdvantech
