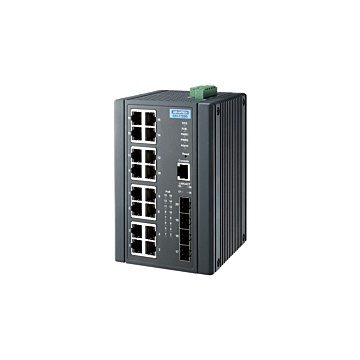

EKI-7720G-4FPI

SKU
EKI-7720G-4FPI
Lead time 21-30 days

16GE PoE + 4G SFP Ports Managed Industrial PoE Switch

  • 16 IEEE 802.3af/at PoE ports
  • Up to 420W power budget
  • SFP socket for easy and flexible fiber expansion
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • -40 ~ 70°C wide-range operating temperature
  • Dual 48 ~ 57VDC power inputs and 1 x relay output
Ethernet Communication
Port Number 16
RJ-45 Port Connector 16 x RJ-45
RJ-45 Transmission speed 10/100/1000Mbps
RJ-45 Transmission Distance 100m
Fiber Port Interface SFP
Fiber Transmission Speed 100/1000 Mbps
Fiber Transmission Distance Up to 110 km
Certification
Ethernet Standard IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad
EMI CE, FCC Class A
EMC EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock
IEC 60068-2-27
Freefall -
Vibration IEC 60068-2-6
Power
Power Input 48-57 VDC
Operating Current 0.3A @ 48VDC (system)
Consumption 16W


PoE Information
PoE Port Number 16
PoE Output 25.5W
PoE Budget 420W
Switch Properties
MAC Table Size 8K
Packet Buffer Size 4.1M bit
Switch Fabric Speed 16Gbps
Jumbo Frame 9,216 bytes
Mechanical
Dimension 97 x 152 x105mm
IP Rating IP30
Enclosure Metal
Weight 1.2kg
Mounting DIN-rail, Wall
Environment
Operating Temp -40 ..70C
Storage Temp -40 ..85C
Relative Humidity 10-95%
More Information
Managed EthManaged
Fiber OptionSFP
PoE OptionPoE Ports
Manufacturer / BrandAdvantech
