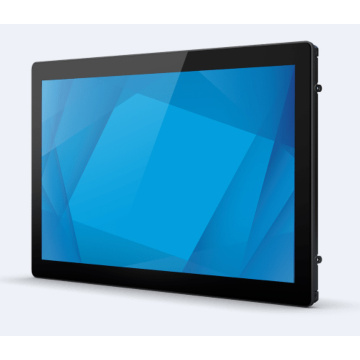

ELO 2294L Kosketusnäyttö (PCAP)
SKU
E330620
Lead time 5-10 days
726.65EUR 579.00EUR
21.5-inch wide FHD LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, Projected Capacitive 10 Touch Zero-Bezel, USB touch controller interface, Clear, No power brick
| Display | |
| Screen Size | 21.5" TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | 1000 ::1 |
| Brightness | 225 nits |
| Viewing Angle | 178 L/R/U/D |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| Standard
configuration |
HDMI |
| DisplayPort | |
| USB-Input (touch) | |
| 12V DC input | |
| Operating System | |
| Operating System | Windows 10 /Windows11 / LINUX |
| Power | |
| DC Input / Source Voltage | +12V DC |
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | 0ºC to 40ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | |
| Enclosure | |
| Bezel | - |
| Material | - |
| Mounting | VESA |
| Certification | |
| Certification | UL, FCC; RCM; cUL, IC; CCC; CE, TUV; VCCI; KCC; CoC; BSMI; CB; RoHS, China RoHS, WEEE |
