FPM-5191G

SKU
FPM-5191G-R3AE
Not available

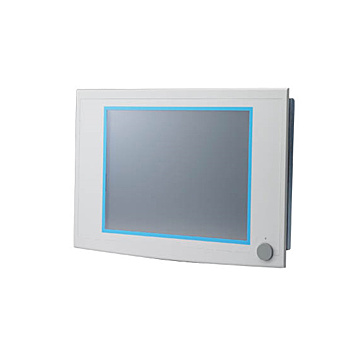

19" SXGA Industrial Monitor with Resistive Touchscreen, Direct-VGA, and DVI Ports
Details
* 19" SXGA TFT LCD with resolution up to 1280 x 1024
* Direct VGA & DVI-D video input interface
* Lockable OSD keys with 2 user-defined contrast/brightness settings
* Flat-sealed front panel
* Robust design with anti-rust chassis and aluminum die-cast front panel
* Front accessible USB connector
* Combo RS-232 & USB interface for touchscreen function (optional)
* Supports industrial 10-30 VDC power input
* Supports panel, wall, desktop, rack or VESA arm mounting
* Front panel is NEMA4/IP65 compliant
Specifications
Display size
19" TFT LCD

Input interface
VGA, DVI-D

Native resolution
1280*1024

Display properties
Brightness 300cdm2
View Angle (H/V) 178/178
Display color 16.7M


Chassis structure
Aluminium front panel
Steel chassis

Power Supply
a) 10-30V DC
b) 230V AC adapter optional

Dimension & Weight
481.9 x 384.6 x 58.5 mm
10kg

Environment Specifications
Operating Temperature 0..50C

Software Support
Windows 2000/Windows XP touch drivers

Mounting
Panel, wall, VESA arm, or stand, 19" rackmount with
optional mounting kit

Safety: BSMI, CCC, CE, FCC, UL

For more information see datasheet.
More Information
Display Size19"
Touch typeResistive
Signal inputVGA, DVI-D
