GOT107W-319

Lead time 4-22 days
SKU
GOT107W-319

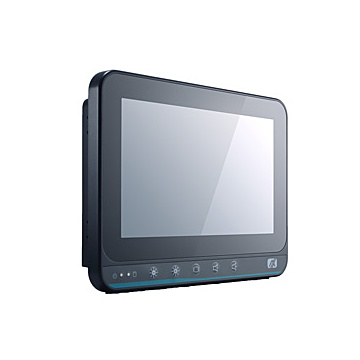

7" WSVGA TFT Fanless Touch Panel Computer with Intel Celeron N3350 or Pentium N4200
Details
* 7" WSVGA TFT LCD display with LED backlight
* Fanless design with Intel® Celeron® processor N3350
* 2 GbE LANs, 2 USB and 2 COM
* Plastic and IP65-rated front bezel
* External AT/ATX mode selection switch
* Easily accessible storage design
* Supports panel mount, wall mount, VESA arm and desktop stand
Specifications
System
Processor Intel® Celeron® processor N3350 up to 2.40 Ghz
Intel® Pentium® Processor N4200 up to 2.5 Ghz
CPU Performance
Security Hardware
Chipset SoC
Storage 1 x mSATA
Storage Support
Memory 1 x SO DIMM DDR3L 1600MHz
up to 8 GB
Memory (RAM)
Display
Screen Size 7" TFT LCD
Screen Resolution 1024x600
Display Ratio 16 ::09
Contrast Ratio
Brightness 320 nits
Viewing Angle
Number of Colors
Touch Screen
Touchscreen Projected Capacitive (Multi-touch)
I/O Ports
USB 2.0 -
USB 3.0 2x USB 3.0
Serial 1x RS-232
1x RS-232/422/485
Video -
Ethernet 2 x RJ45 GbE
Other Ports
Operating System
Operating System Windows 10
Power
DC Input / Source Voltage 9-24V DC
230V AC-DC Adapter
Power Management
Expansion Slots

1 x M.2 Key E for wireless module
1 x Full-size PCI Express Mini Card slot
Multimedia
Integrated Speakers -
Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 0,75 kg
Dimensions 192 x 37.4 x 145mm
Enclosure
Bezel
Material Plastic
Mounting Panel , VESA
Note *
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
