GOT110-316-PCT-PoE-PD

SKU
GOT110-316-PCT-PoE-PD
Lead time 14-22 days

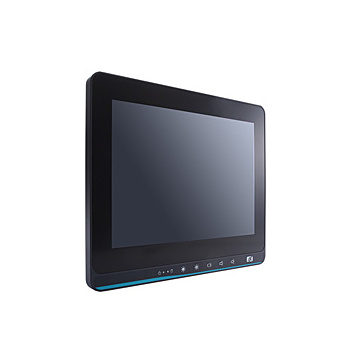

10.4" XGA TFT Fanless Touch Panel Computer with Intel® Celeron N3350, PoE PD
Ominaisuudet
* 10.4" XGA TFT LCD display with LED backlight
* Fanless design with Intel® Celeron® processor N3350
* 1 GbE LAN, 1 PoE PD, 4 USB and 2 COM
* IP65-rated front bezel and IPX1 rated back cover
* External AT/ATX mode selection switch
* Easy maintenance design for storage and memory
* Supports panel mount, wall mount, VESA arm and desktop stand
* Adjustable RS-232/422/485 setting via BIOS
* Aluminum cover for the better thermal dissipation and reliability
Spesifikaatiot
System
Processor Intel® Celeron® processor N3350
CPU Performance
Security Hardware
Chipset SoC
Storage 1 x SATA
1 x mSATA
Storage Support
Memory 1 x SO DIMM DDR3L 1600MHz
up to 8 GB
Memory (RAM)
Display
Screen Size 10.4" XGA TFT LCD
Screen Resolution 1024x768
Display Ratio 4 ::3
Contrast Ratio
Brightness 350nits
Viewing Angle 160/160
Number of Colors
Touch Screen
Touchscreen Projected Capacitive (Multi-touch)
I/O Ports
USB 2.0 -
USB 3.0 4x USB 3.0
Serial 1x RS-232
1x RS-232/422/485
Video -
Ethernet 1 x RJ45 GbE
1 x RJ45 PoE PD
Other Ports
Operating System
Operating System Windows 10
Power
DC Input / Source Voltage Power Device (PD): follows IEEE 802.3at (25.5W)
Power Management
Expansion Slots

1 x M.2 Key E for wireless module
1 x Full-size PCI Express Mini Card slot
Multimedia
Integrated Speakers -
Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 1,8 kg
Dimensions 415 x 43,5 x 233mm
Enclosure
Bezel
Material Plastic, Metal
Mounting Panel , VESA
Note *
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
More Information
CoolingFanless
Display Size10.4"
Touch typeProjected Capasitive (PCAP)
