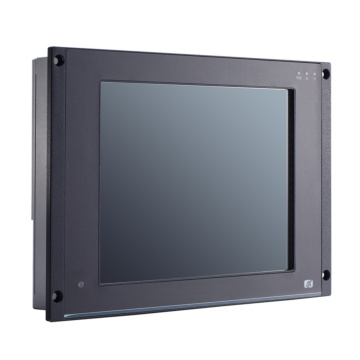

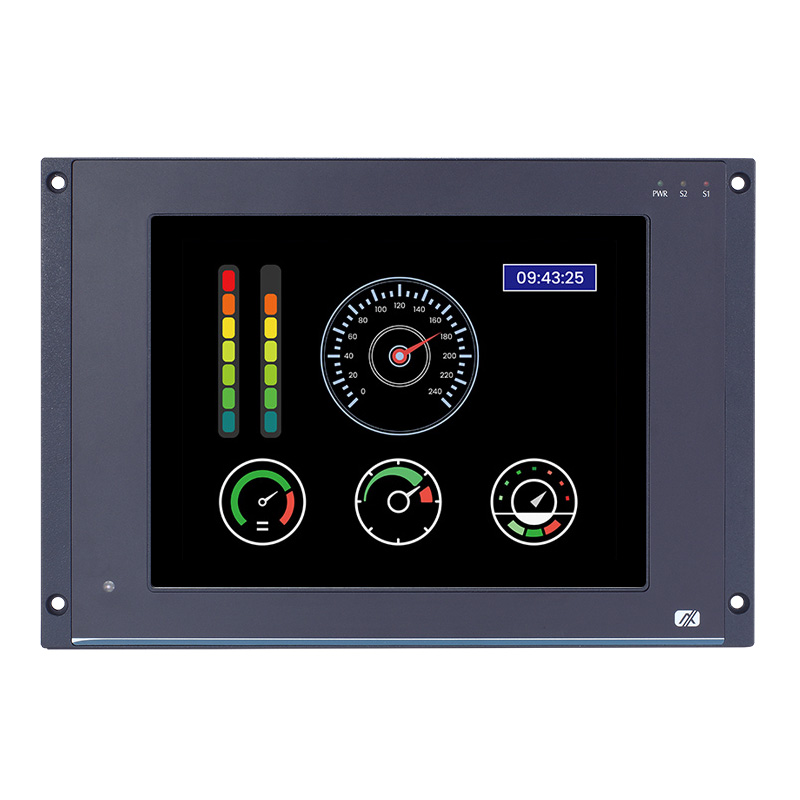

GOT712A Railway Panel PC
SKU
GOT712A
Lead time 21-30 days
EN 50155 12.1" XGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom® Processor x6425E (12W) 2.0 GHz (-40°C to +70°C)
- Sunlight-readable 12.1" XGA TFT LCD
- Intel Atom® processor x6425E, 12W (Elkart Lake)
- M12-type lockable connectors design
- Auto-dimming for different environments
- Operating temperature ranges from -40°C to +70°C (EN 50155 OT4)
- Typical 24 to 110 VDC wide power input range for all types of trains
- EN 50155 and EN 45545-2 certified for railway applications
| System | |
| Processor | Intel Atom® processor x6425E, 12W (Elkart Lake) |
| System configuration |
Intel Atom® x6425E |
| Security Hardware | |
| Chipset | SoC integrated |
| Storage | 1 x M.2 Key B 2242 SSD |
| Memory | 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB |
| Display | |
| Screen Size | 12.1" XGA TFT LCD |
| Screen Resolution | 1024 x 768 |
| Display Ratio | 4 ::3 |
| Contrast Ratio | |
| Brightness | 600 nits |
| Viewing Angle | 178 / 178 |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 1 x M12 A-coded USB 2.0 (2-port signal) |
| USB 3.0 | |
| Serial | 2 x M12 A-coded RS-232/422/485 |
| Video | n/a |
| Ethernet | 2 x M12 X-coded-8P 2.5GbE LAN |
| Other Ports | 1 x M12 A-coded-8P CANBus 1 x terminal block DIO (6-in/2-out) 1 x M12 A-coded-8P Mic-in/Line-out |
| Operating System | |
| Operating System | Windows® 11 Ubuntu 22.04 |
| Power | |
| DC Input / Source Voltage | 1 x M12 A-coded DC-in Typical 24 to 110 VDC EN 50155 Class S2 10ms power interruption protection |
| Expansion Slots | |
| 1 x full-size Mini Card slot (PCIe/USB/SIM) 1 x full-size Mini Card slot (PCIe/USB/mSATA ) 1 x M.2 Key B 2242 slot (SATA) 1 x M.2 Key E 2230 slot (PCIe/USB) |
|
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | -40°C to +70°C (EN 50155 OT4) |
| Humidity Range | 10% to 90% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 3.3 kg |
| Dimensions | 330 x 55 x 245 mm |
| Enclosure | |
| Bezel | IP65 Front |
| Material | Metal |
| Mounting | Wall mount , VESA |
| Certification | |
| Certification | CE/FCC Class A, EN 50155, and EN 45545-2 certified |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Cooling | Fanless |
| Display Size | 12.1" |
| Touch type | Projected Capasitive (PCAP) |
